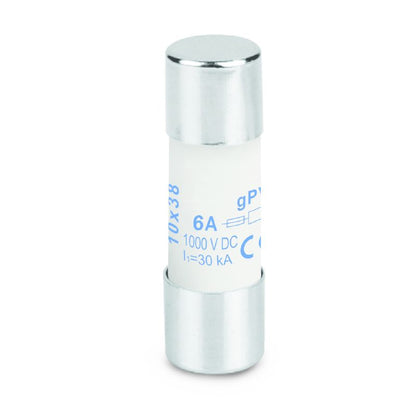

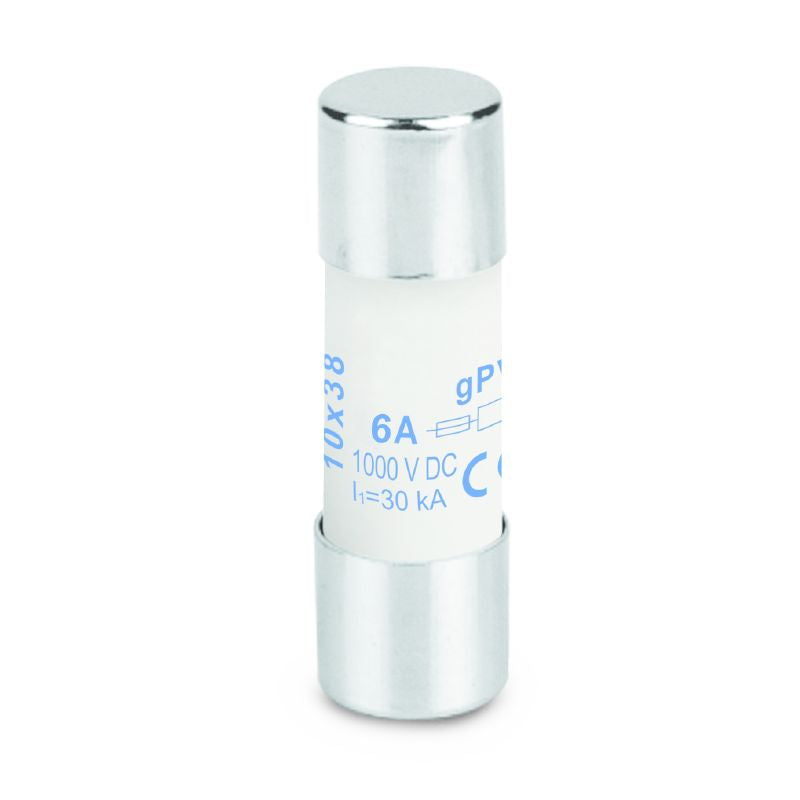

2783210000 - 10x38 6A PV Cartridge Fuse, 1000V, IEC Compliant (Pack of 10)
2783210000 - 10x38 6A PV Cartridge Fuse, 1000V, IEC Compliant (Pack of 10)
SKU: SKU: 2783210000 Download PDF
- 2783210000 - 10x38 6A PV Cartridge Fuse, 1000V, IEC Compliant (Pack of 10)
- 2783210000 - 10x38 6A PV Cartridge Fuse, 1000V, IEC Compliant (Pack of 10)
Couldn't load pickup availability
Description:
Introducing a robust 10x38 cartridge fuse tailored specifically for photovoltaic systems This fuse operates with a voltage rating of 1000 V and supports a current of up to 6 A It meets IEC standards, including IEC 60269-1 and IEC 60269-6, ensuring reliability and safety Furthermore, this product is RoHS compliant without any exemptions, and it contains none of the substances categorized as very high concern (SVHC) in amounts exceeding 0.
1 wt% With an operational temperature range from -40 to 80 degrees Celsius and a storage temperature limit of -40 to 90 degrees Celsius, this fuse is built to withstand various environmental conditions.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for photovoltaic applications.
•Complies with IEC standards.
•Rated breaking capacity of 30 kA.
Specifications:
| Depth | 10 mm |
| Height | 38 mm |
| Width | 10 mm |
| Diameter | 10.3 mm |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40...80 ℃ |
| Fuse-link standard | IEC 60269-1, IEC 60269-6, gPV (EN 60269-6) |
| Current | 6 A |
| Rated DC voltage | 1,000 V |
| Rated breaking capacity | 30 kA |
| Material of contacts | silver-plated |
| Power dissipation, max. | 1.84 W |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
