Description:

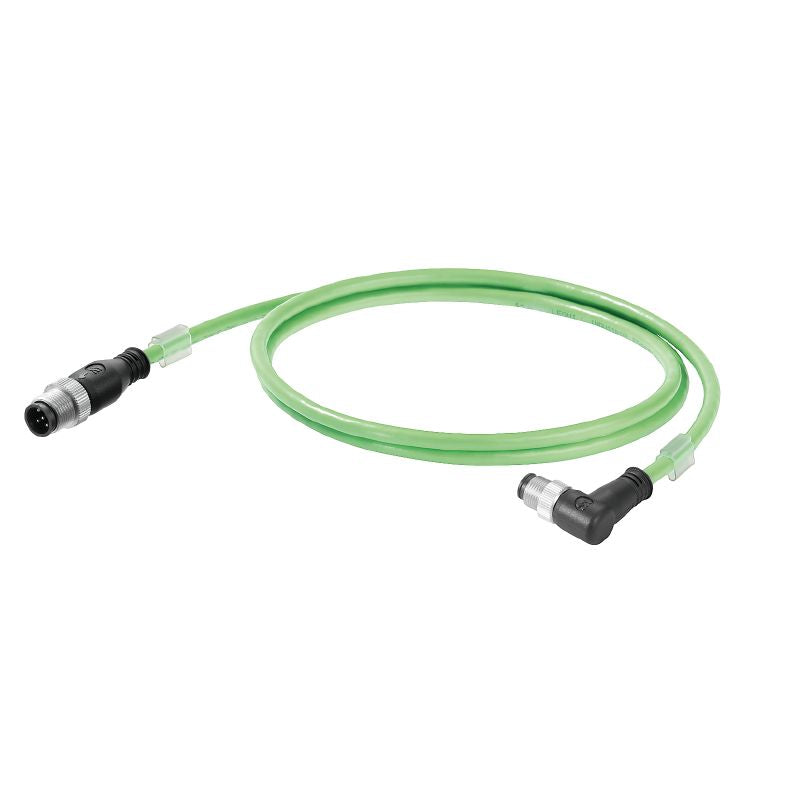

Experience reliable connectivity with this dragline cable, designed to meet PROFINET standards It is equipped with M12 D-coded connectors, available in both straight and angled configurations, offering exceptional IP 67 protection for diverse industrial environments This cable adheres to Cat5 and Cat5e specifications, ensuring optimal performance for data transmission Perfect for your industrial applications, it guarantees dependable connections.

Features and Benefits:

•ROHS compliant with exemption.

•Well-suited for industrial environments with IP 67 protection.

•Suitable for both indoor and outdoor applications due to its temperature ratings.

Specifications:

Length	10 m
Net weight	660 g
Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Standard, insulating material	DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material	DIN EN 13602 Cu-ETP-A..B
Wire material	Stranded tin-plated copper wire
Complete shielding	Aluminium foil
Cross-section	4*AWG 22/7 - 0.32 mm²
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Sheathing colour	green (RAL 6018)
Electrical properties of cable	{'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Loop resistance': '120 Ω/km', 'Operating voltage (UL rating)': '600 V', 'Signal propagation time': '5.3 ns/m'}
Mechanical properties	{'Bending cycles': '3 Mio', 'Min. bending radius, once only': '5 x cable diameter', 'Min. bending radius, repetitive': '7.5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'UV-resistant': 'Yes'}
