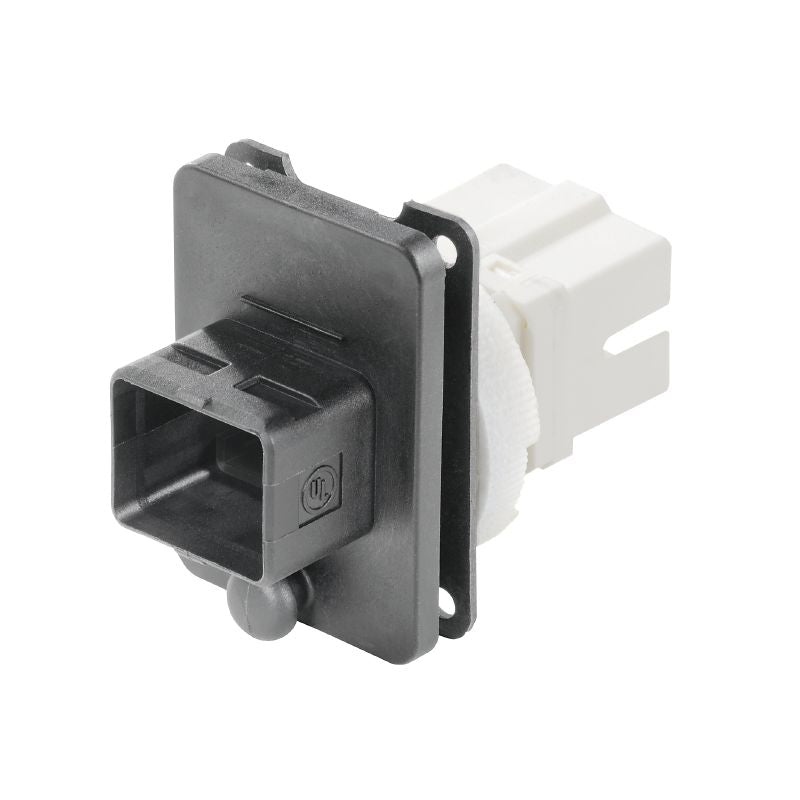

IE-BS-V04P-SCRJ2SC-MM-C - Version 4 SCRJ Connector for POF, IP67 Rated, RoHS Compliant, 500 Cycles (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the version 4 connector, expertly designed to link SCRJ with two SC connectors, making it ideal for multimode applications that utilize Plastic Optical Fiber (POF) With an impressive IP67 rating, this connector is built to withstand various environmental conditions and adheres to RoHS standards It functions effectively in a temperature range of -40°C to 70°C Crafted from PA UL 94 V0 material, it boasts a maximum insertion loss of just 0.

4 dB and is capable of enduring up to 500 plugging cycles Additionally, it offers a return loss of at least 30 dB, ensuring reliable performance in any application.

Features and Benefits:

•Compliant with RoHS without exemption.

•Environmental compliance with no SVHC above 0.1 wt%.

•IP67 protection degree.

•Insertion loss ≤ 0.4 dB.

•Return loss ≥ 30 dB.

•Supports 500 plugging cycles.

Specifications:
