Description:

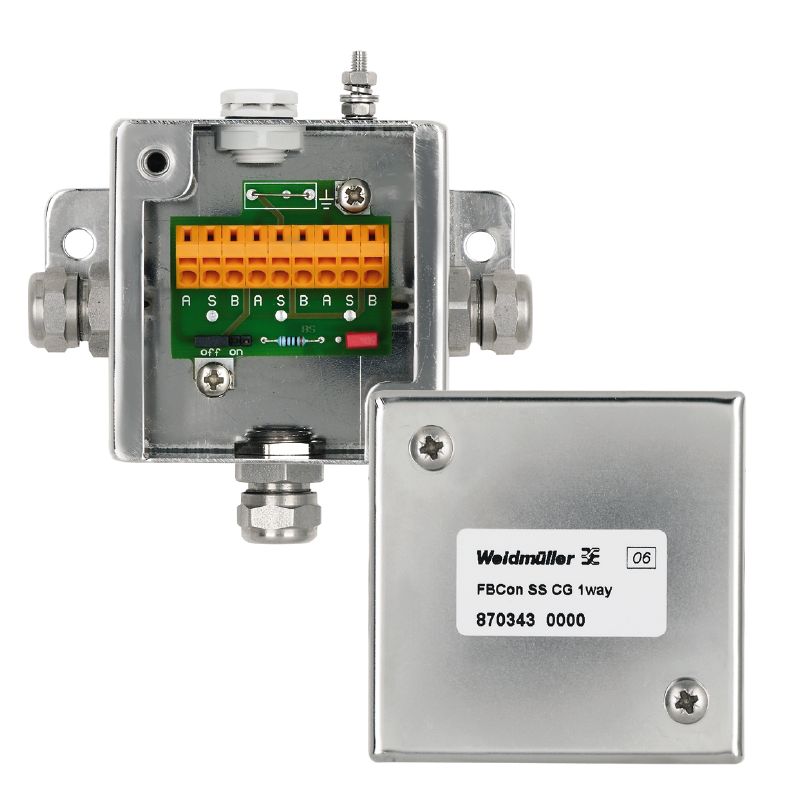

This passive field distributor is designed specifically for the Profibus PA fieldbus system, providing reliable connectivity It complies with protection class standards IP66/IP67, ensuring robust performance even in harsh environments.
Features and Benefits:
•Standard distributor without bus termination.
•1-way distributor.
•IP65, IP66 protection.
•Supports earthing concepts for multi-point or single-point screen earthing.
•Stainless steel, rust-proof housing.
Specifications:
| Depth | 47.5 mm |
| Height | 47.5 mm |
| Width | 79.5 mm |
| Net weight | 418 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-DP, Modbus RS485 |
| Cable entry | plastic screwed cable gland, Round |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Protection degree | IP65, IP66 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
