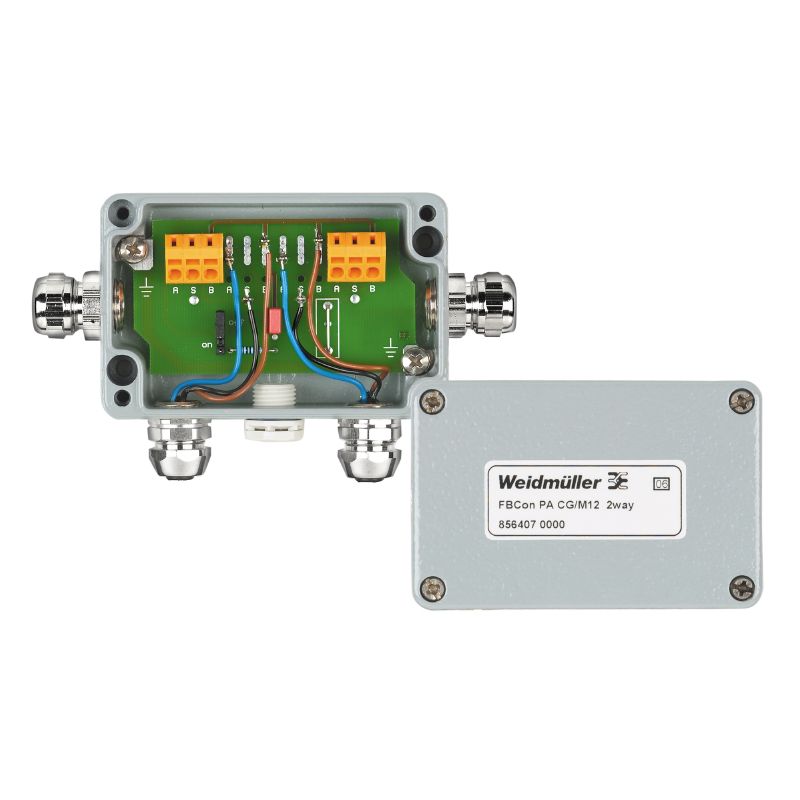

8564070000 - IP66 Passive Field Distributor for Profibus & Foundation Fieldbus
8564070000 - IP66 Passive Field Distributor for Profibus & Foundation Fieldbus
SKU: SKU: 8564070000 Download PDF
- 8564070000 - IP66 Passive Field Distributor for Profibus & Foundation Fieldbus
- 8564070000 - IP66 Passive Field Distributor for Profibus & Foundation Fieldbus
Couldn't load pickup availability
Description:
Introducing a dependable passive field distributor, specifically engineered for seamless integration with Profibus PA and Foundation Fieldbus H1 systems This unit boasts a sturdy construction, compliant with IP66/IP67 standards for water and dust resistance It allows for the connection of up to eight field devices within a single fieldbus segment Additionally, it accommodates various earthing configurations, including single-point and multi-point screen earthing, in accordance with established guidelines.
Perfect for enhancing your field communication capabilities with reliability and ease.
Features and Benefits:
•Complies with protection class IP66/IP67.
•Supports earthing concepts as per guidelines.
•Two-way distributor design.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 64 mm |
| Net weight | 344 g |
| Storage temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5 to 95%, no condensation |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Clamping range | 4 mm² to 6 mm² |
| Cable entry | Branch line M12, Round |
| Conductor O.D. | 6.5 mm to 9.5 mm |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Housing main material | Aluminium |
| Number of contact sockets | 2 |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Protection degree | IP65, IP66 |
| Type of mounting | surface-mounted |
