Description:

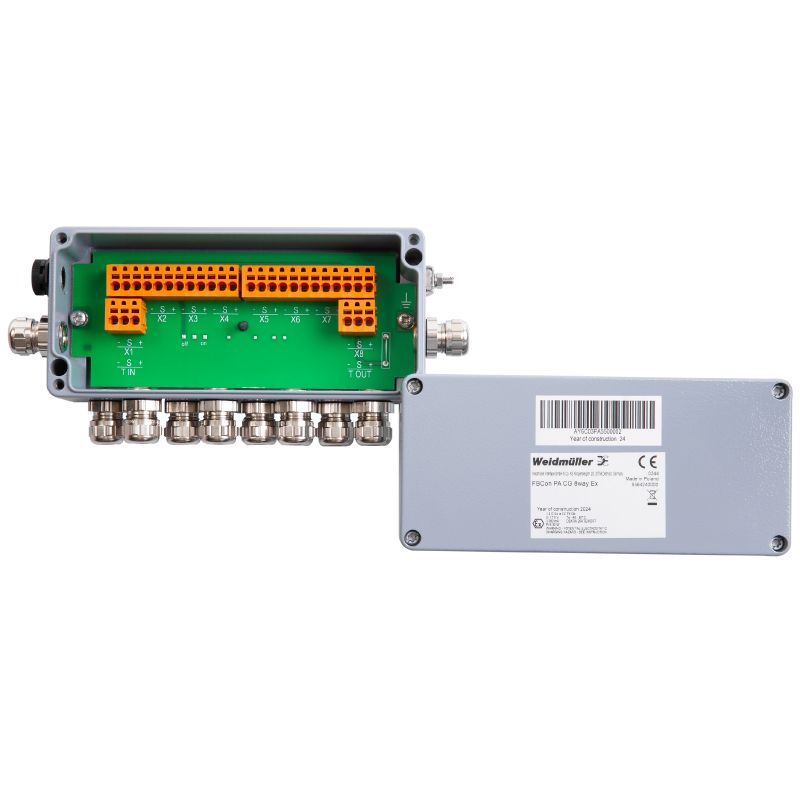

Introducing a reliable passive field distributor, perfect for fieldbus systems such as Profibus PA and Foundation Fieldbus H1 Engineered for use in explosive environments classified as Zone 1 or Zone 2, this distributor is FISCO certified, adhering to the Fieldbus Intrinsically Safe Concept It supports the connection of up to eight intrinsically safe FISCO field devices, all sharing the same type of explosion protection.

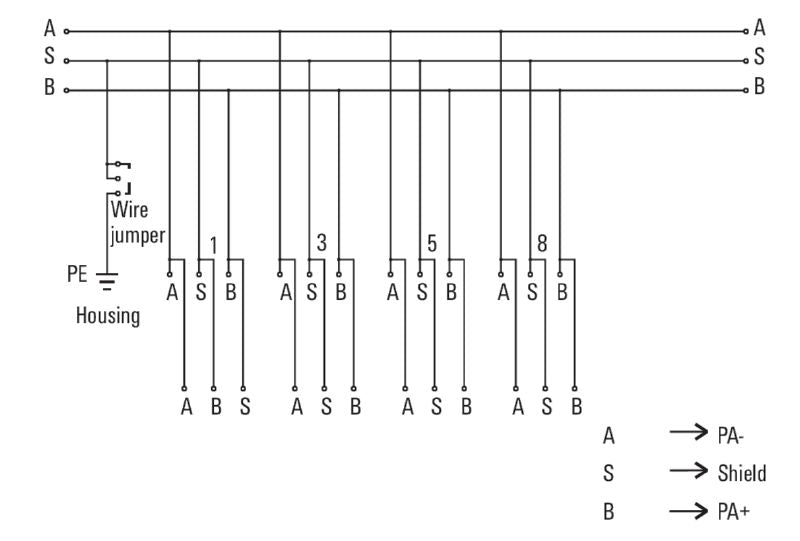

Versatile in its design, it also accommodates multiple earthing arrangements, including both multi-point and single-point screen earthing, according to Profibus PA and Foundation Fieldbus guidelines.
Features and Benefits:
•Approved for use in explosive risk zones.
•Connects up to eight intrinsically safe FISCO field devices.
•Fieldbus systems such as Profibus PA and Foundation Fieldbus.
Specifications:
| Depth | 34 mm |
| Height | 58 mm |
| Width | 80 mm |
| Length | 175 mm |
| Net weight | 943 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium AISi12 |
| Number of contact sockets | 8 |
| Number of poles | 3 |
| Pollution severity | 2 |
| Protection degree | IP66 |
| Type of distribution | 8-way distributor EEx |
| Type of mounting | Front mounting |
