Description:

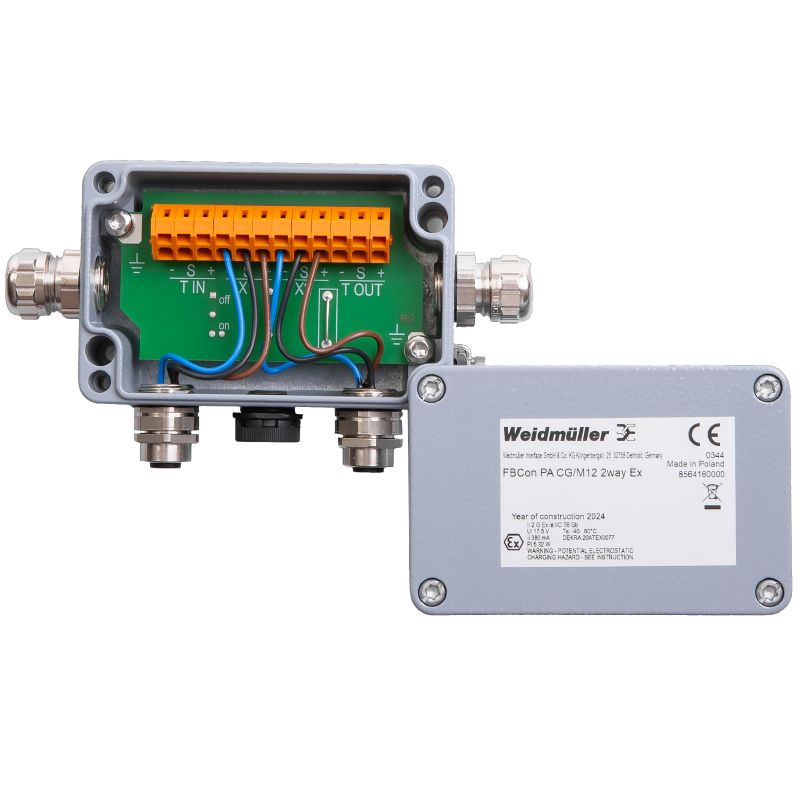

Introducing a reliable passive field distributor tailored for Profibus PA and Foundation Fieldbus H1 systems This device is specially engineered to function in hazardous locations categorized as Zone 1 or Zone 2 and holds a FISCO (Fieldbus Intrinsically Safe Concept) certification It allows for seamless connectivity with up to eight intrinsically safe FISCO field devices, all while adhering to stringent explosion protection standards.
Features and Benefits:
•Approved for use in explosive risk zones.
•Supports multiple earthing concepts suitable for FISCO.
•Two-way distribution.
•Surface-mounted and front mounting options available.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 64 mm |
| Length | 98 mm |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Number of contact sockets | 2 |
| Number of poles | 3 |
| Protection degree | IP66 |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
