Description:

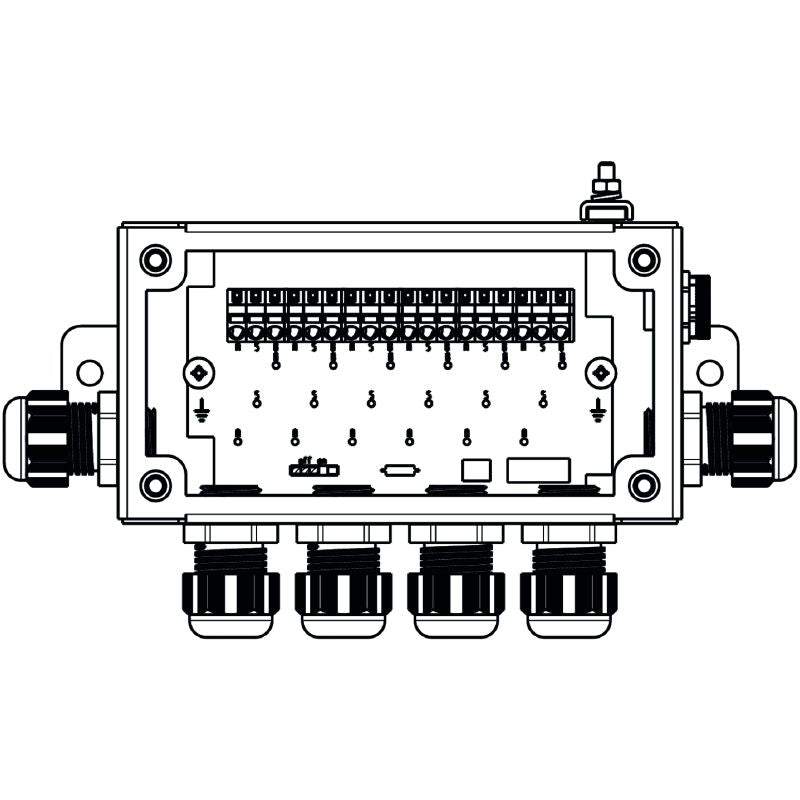

Introducing the FBCON SS PCG 4WAY, a versatile 4-way distributor engineered for use in diverse environments, featuring robust IP65 and IP66 ratings This unit offers a compact design with dimensions of 80 mm in width, 36 mm in height, and a depth of 625 mm It operates efficiently across a wide temperature range, from -40 °C to 80 °C, ensuring reliability in various conditions Weighing in at 764 g, this distributor fully complies with environmental standards, including RoHS and REACH, making it a responsible choice for your needs.
Features and Benefits:
•IP65 and IP66 protection degrees.
•Constructed from rust-proof stainless steel and aluminum.
•Polished housing surface.
•Compatible with Profibus-PA and Foundation Fieldbus systems.
•4-way distribution capability.
•Suitable for surface mounting.
Specifications:
| Depth | 62.5 mm |
| Height | 36 mm |
| Width | 80 mm |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Clamping range, min | 4 mm² |
| Clamping range, max | 6 mm² |
| Conductor O.D., max | 9.5 mm |
| Conductor O.D., min | 6.5 mm |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Protection degree | IP65, IP66 |
| Type of distribution | 4-way distributor |
| Type of mounting | surface-mounted |
| Probability of failure | SIL in compliance with IEC 61508 |
