Description:

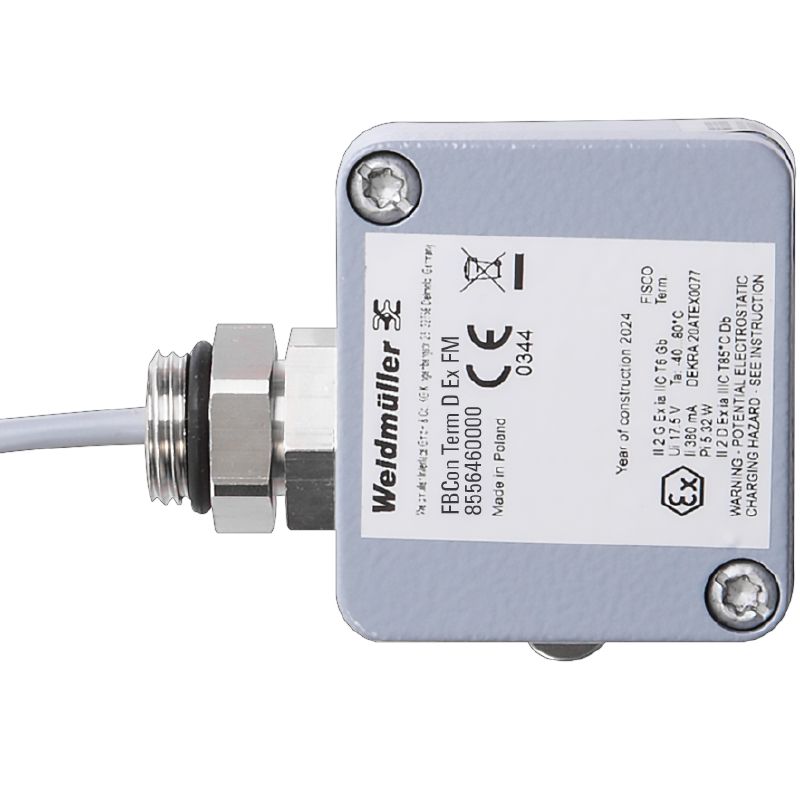

Introducing the FBCon Term D Ex, a specialized passive terminating resistor tailored for fieldbus systems such as Profibus PA and Foundation Fieldbus H1 This device is engineered for use in hazardous locations classified as Zone 1 or Zone 2 It boasts certification under the FISCO (Fieldbus Intrinsically Safe Concept) guidelines and is rated with protection classes IP66 and IP67, ensuring reliable performance in challenging environments.
Features and Benefits:
•Approved for use in hazardous zones Zone 1 and Zone 2.
•Certified according to FISCO standards.
•Meets protection classes IP66/IP67.
Specifications:
| Dimensions | {'Depth': '49 mm', 'Height': '36 mm', 'Width': '45 mm'} |
| Net weight | 178 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Bus system | Profibus-DP, Modbus RS485 |
| Cable entry | Brass cable gland |
| Connection type PE | M16 cable gland |
| Housing main material | Aluminium |
| Protection degree | IP66 |
| Type of distribution | Terminator |
| Type of mounting | surface-mounted |
