Description:

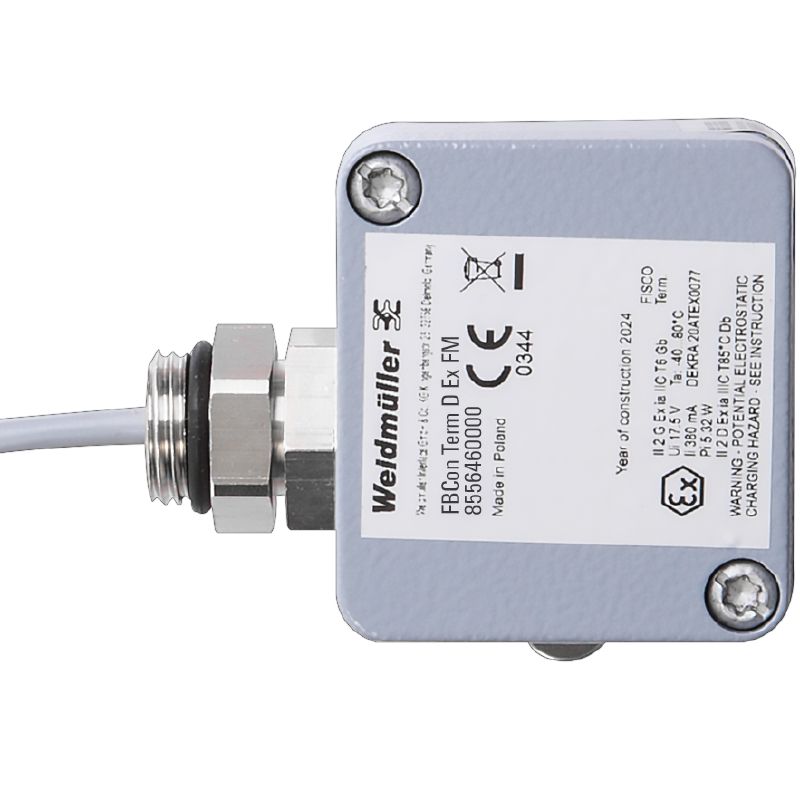

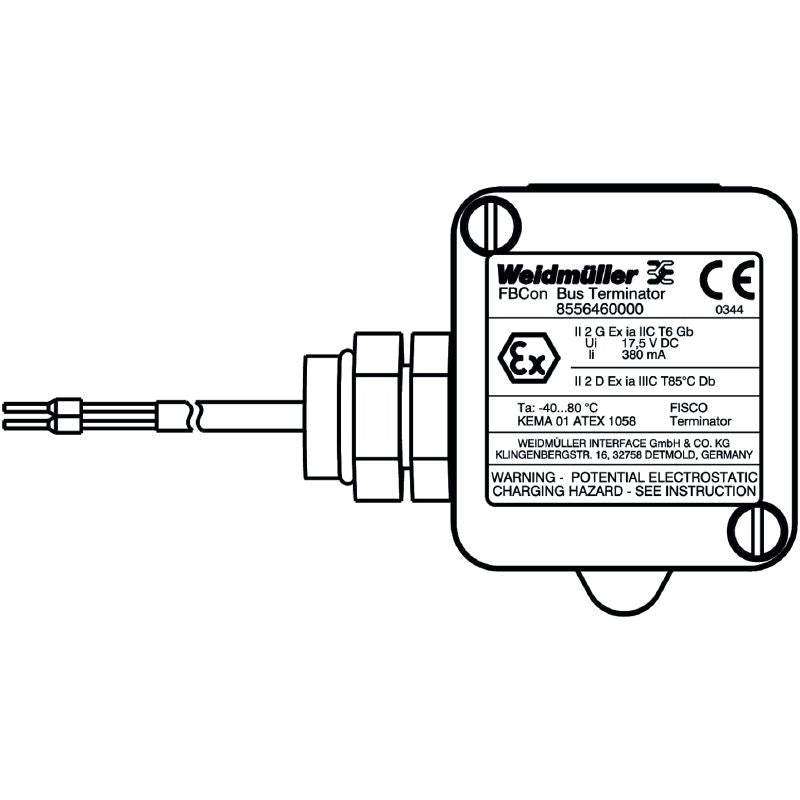

Introducing the FBCon Term D Ex device, a robust passive terminating resistor designed specifically for use in fieldbus systems such as Profibus PA and Foundation Fieldbus H1 This reliable unit is certified for use in explosive environments classified as Zone 1 or Zone 2 Adhering to FISCO (Fieldbus Intrinsically Safe Concept) standards, it offers exceptional safety With IP66/IP67 protection classes, this device is built to withstand harsh conditions, making it an excellent choice for demanding applications.
Features and Benefits:
•Approved for explosive environments in Zone 1 or Zone 2.
•Meets FISCO certification standards.
•Complies with protection classes IP66/IP67.
Specifications:
| Depth | 49 mm |
| Height | 36 mm |
| Width | 45 mm |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Bus system | Profibus-DP, Modbus RS485 |
| Cable entry | Brass cable gland |
| Housing main material | Aluminium |
| Protection degree | IP66 |
| Type of distribution | Terminator |
| RoHS Compliance Status | Compliant with exemption |
