Description:

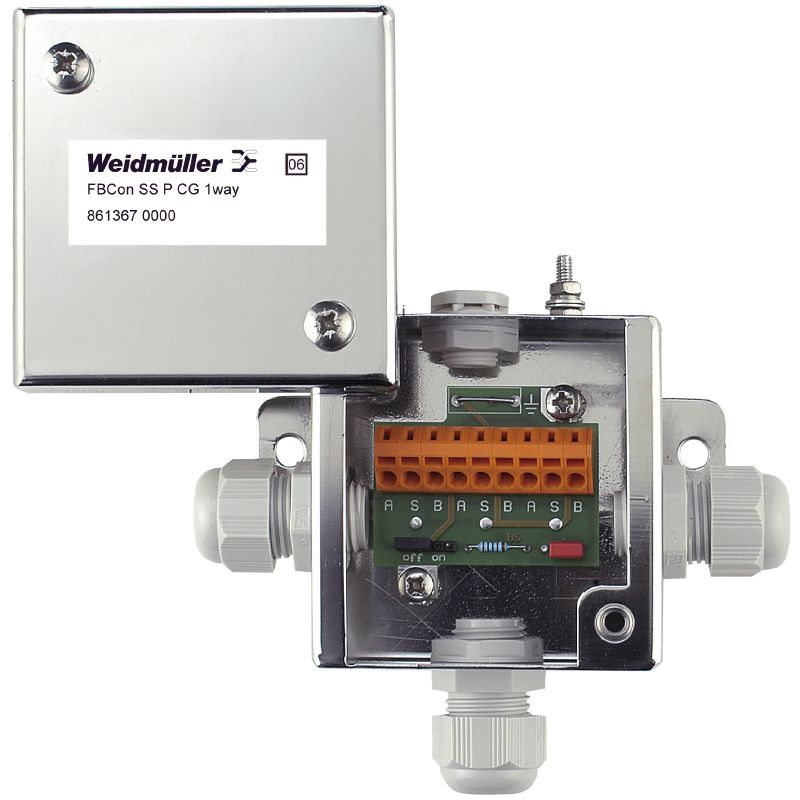

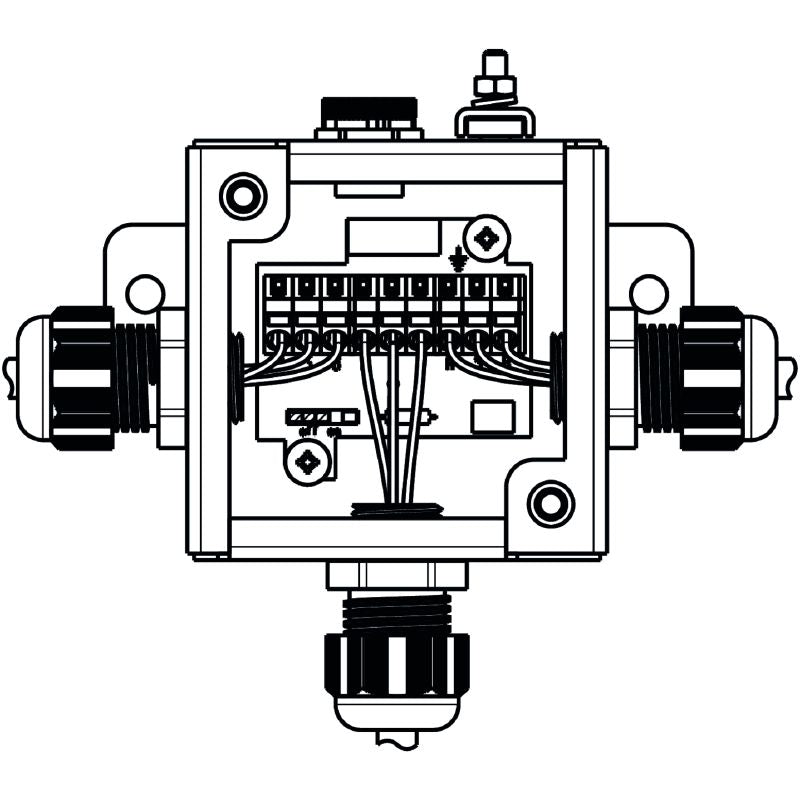

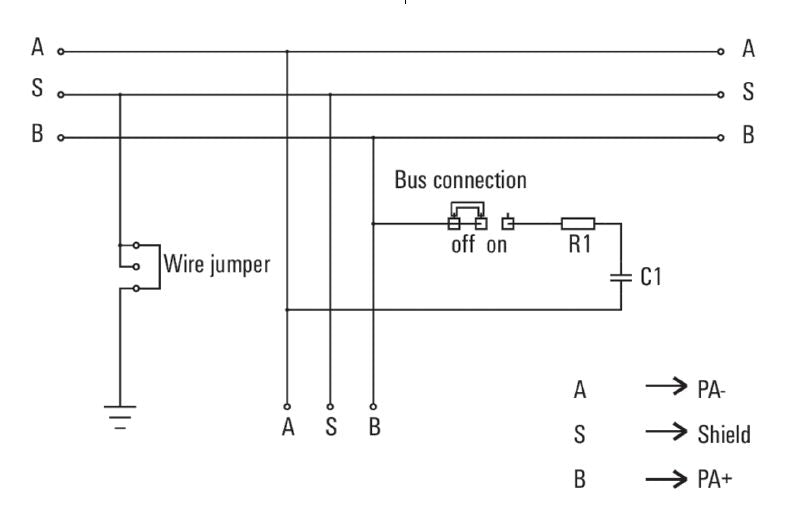

Introducing the FBCON SS PCG 1WAY, a highly durable device engineered for one-way distribution with its effective active bus termination feature Designed to withstand diverse environmental conditions, this unit boasts impressive IP65 and IP66 ratings for water and dust resistance Crafted from rust-resistant stainless steel, it also includes a housing with a pressure compensation element This product is specifically tailored for use within Profibus-PA and Foundation Fieldbus systems, ensuring reliable performance in industrial applications.
Features and Benefits:
•Compliant with RoHS and certified under UL File No. E141197.
•Suitable for storage, ambient, and operating temperatures ranging from -40 °C to 80 °C.
•Can accommodate a minimum clamping range of 4 mm² and a maximum of 6 mm².
•Offers a maximum conductor outer diameter of 9.5 mm.
•Features a polished stainless steel housing and offers surface mounting options.
Specifications:
| Depth | 79 mm |
| Height | 36 mm |
| Width | 58 mm |
| Net weight | 402 g |
| Operating voltage | 30 V DC |
| Protection degree | IP65, IP66 |
| Number of poles | 3 |
| Pollution severity | 3 |
| Clamping range, min | 4 mm² |
| Clamping range, max | 6 mm² |
| Cable glands | Plastic screwed cable gland |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Humidity | 5...95 %, no condensation |
| RoHS Compliance Status | Compliant with exemption |
