Description:

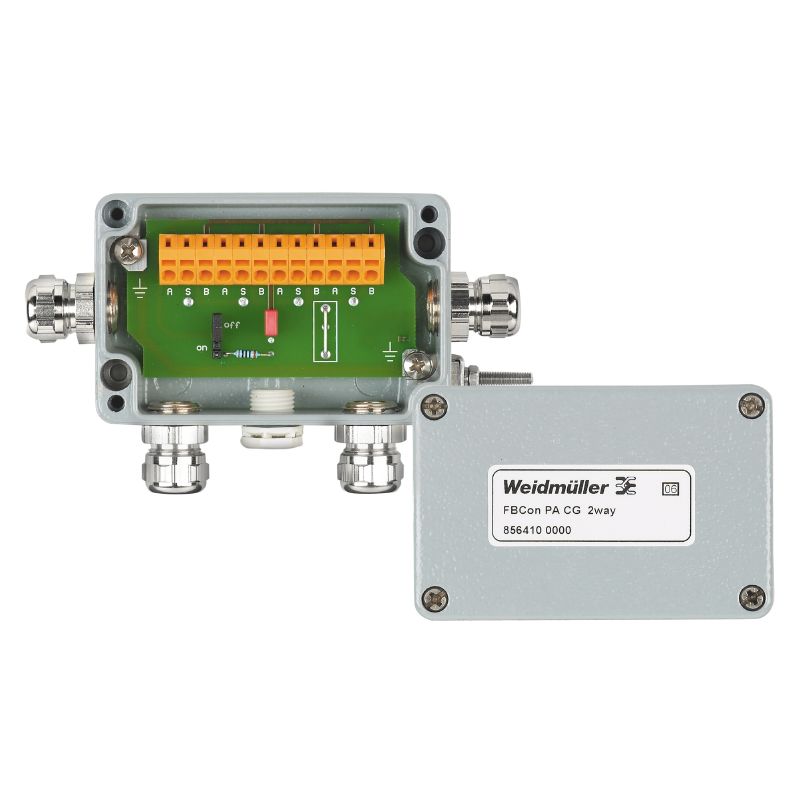

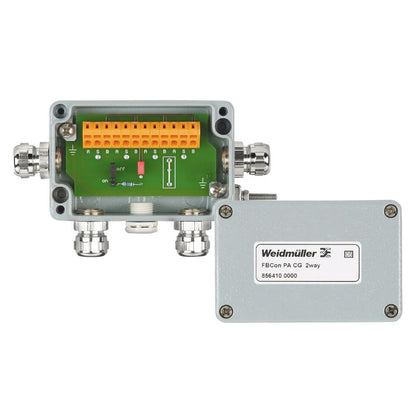

Introducing the FBCON PA CG 2WAY, a robust passive field distributor tailored for fieldbus applications like Profibus PA and Foundation Fieldbus H1 Crafted to withstand the elements, this distributor boasts an ingress protection rating of IP66/IP67, making it ideal for use in tough conditions It facilitates connections for up to eight field devices within a single fieldbus segment and accommodates both multi-point and single-point screen earthing solutions in accordance with the Profibus PA and Foundation Fieldbus standards.
Experience reliable performance and versatile functionality with this essential device.
Features and Benefits:
•Compliant with RoHS and contains exemptions.
•Designed for use in harsh environmental conditions.

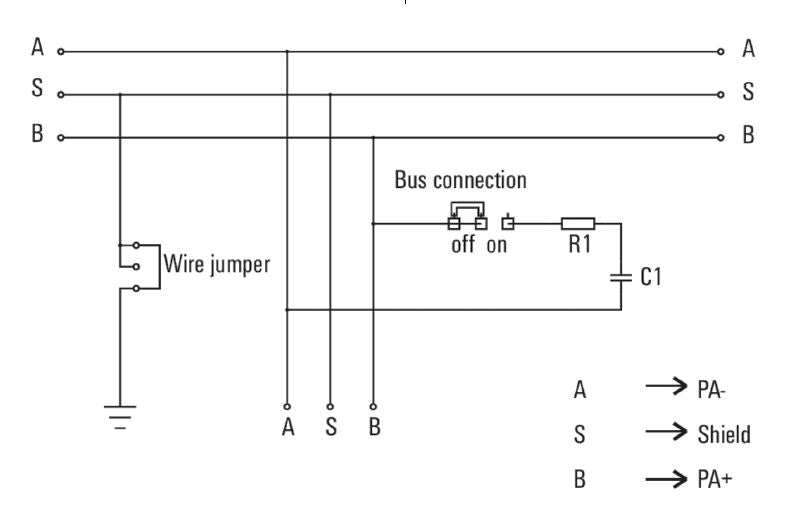

•Supports various earthing concepts.
•Surface-mounted installation.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 64 mm |
| Net weight | 300 g |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5% to 95%, no condensation |
| Clamping range min. | 4 mm² |
| Clamping range max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Round |
| Cable glands | Brass cable gland |
| Conductor O.D. max | 9.5 mm |
| Conductor O.D. min | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium AISi12 |
| Housing surface | powder coating |
| Number of contact sockets | 2 |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Protection degree | IP65, IP66 |
| Type of distribution | 2-way distributor |
| Type of mounting | surface-mounted |
