Description:

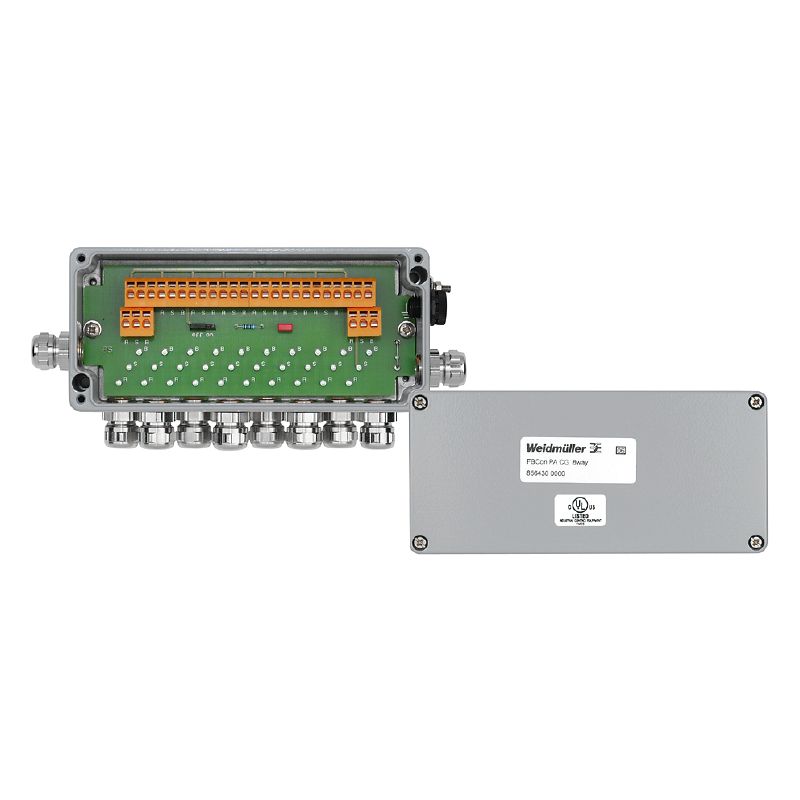

Introducing the FBCON PA CG 8WAY, a versatile 8-way field distributor tailored for Profibus PA and Foundation Fieldbus systems This essential device enables connections for up to eight field devices on a single fieldbus segment, meeting robust protection standards of IP65 and IP66 Built with a durable aluminum housing and equipped with a pressure compensation element, it guarantees reliability and resilience in various environments.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Supports earthing concepts for enhanced safety.
•Constructed with a durable aluminum housing and powder coating.
•Designed for surface mounting.
Specifications:
| Depth | 34 mm |
| Height | 58 mm |
| Width | 80 mm |
| Net weight | 944 g |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5 to 95%, no condensation |
| Clamping range min. | 4 mm² |
| Clamping range max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Round |
| Conductor O.D. max. | 9.5 mm |
| Conductor O.D. min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Protection degree | IP65, IP66 |
| Type of distribution | 8-way distributor |
| Type of mounting | surface-mounted |
