Description:

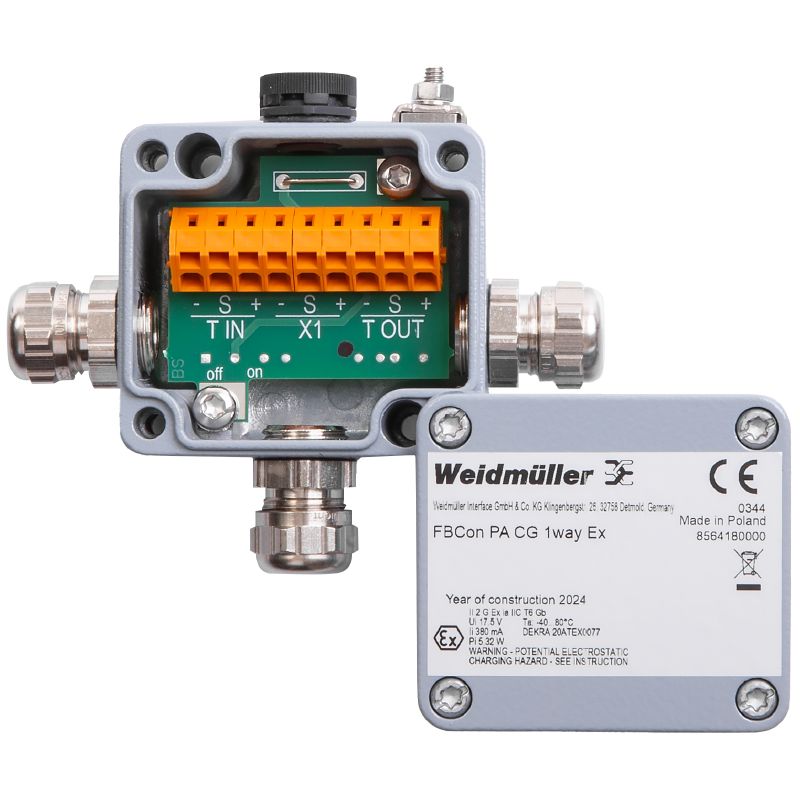

Introducing the FBCON PA CG 1WAY EX, a reliable passive field distributor tailored for Profibus PA and Foundation Fieldbus H1 applications This device is engineered for use in hazardous locations, specifically rated for Zone 1 and Zone 2 environments Certified under FISCO standards, it allows for the safe connection of up to eight intrinsically safe field devices classified as Ex-ia to an associated intrinsically safe fieldbus segment.

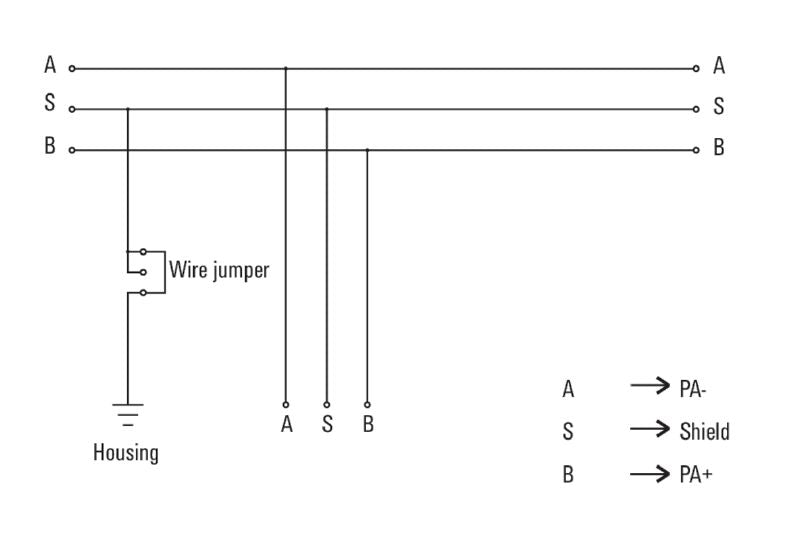

The unit accommodates both multi-point and single-point screen earthing configurations as outlined in the applicable guidelines, ensuring versatility and compliance in various setups.
Features and Benefits:
•IP66 protection degree.
•Structured for explosive risk zones.
•Passive distributor functionality.
•Connects multiple field devices safely.
•Used in explosive risk areas.
•Fieldbus systems including Profibus PA and Foundation Fieldbus H1.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 58 mm |
| Length | 64 mm |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Contact carrier material | Brass |
| Connection type PE | Spur line with cable gland |
| Number of contact sockets | 1 |
| Number of poles | 3 |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Type of distribution | 1-way distributor EEx |
| Type of mounting | surface-mounted, front mounting |
