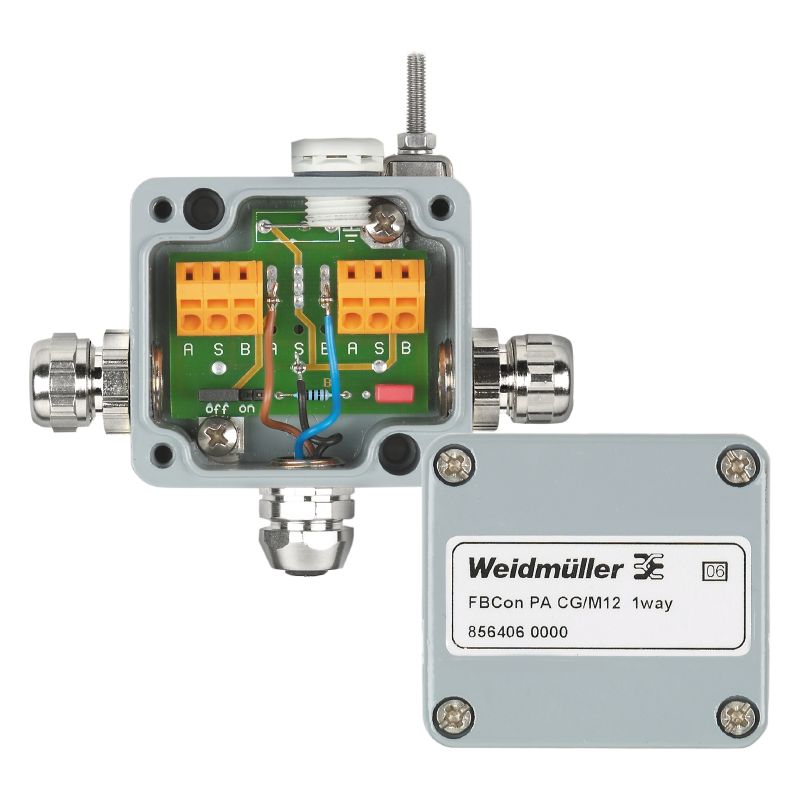

8564060000 - IP66/IP67 Passive Field Distributor for Profibus & Foundation H1
8564060000 - IP66/IP67 Passive Field Distributor for Profibus & Foundation H1
SKU: SKU: 8564060000 Download PDF
- 8564060000 - IP66/IP67 Passive Field Distributor for Profibus & Foundation H1
- 8564060000 - IP66/IP67 Passive Field Distributor for Profibus & Foundation H1
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your field communication with this passive field distributor, specifically engineered for Profibus PA and Foundation Fieldbus H1 networks Featuring robust protection ratings of IP66/IP67, it offers reliable performance in demanding conditions This distributor accommodates up to eight field devices within a single segment and provides flexible earthing solutions, either multi-point or single-point, in alignment with the standards for these fieldbus systems.
Perfect for optimizing your industrial connectivity needs.
Features and Benefits:
•Suitable for fieldbus systems including Profibus PA and Foundation Fieldbus H1.
•Protective design with IP65 and IP66 ratings.
•Connects multiple field devices efficiently.
•Supports various earthing concepts.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 58 mm |
| Net weight | 258 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Branch line M12 |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium, AISi12 |
| Housing surface | stove enamelled |
| Number of contact sockets | 1 |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
