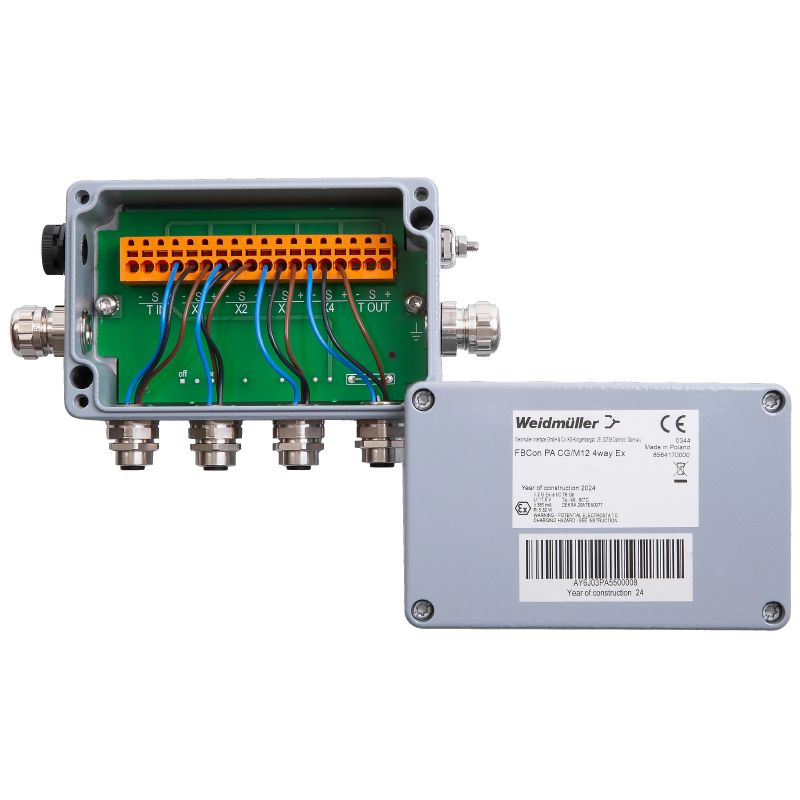

8564170000 - FISCO Fieldbus Distributor for Hazardous Areas

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This device acts as a passive distributor tailored for fieldbus systems, including Profibus PA and Foundation Fieldbus H1 It is certified for use in hazardous areas, particularly in Zones 1 and 2, and meets the FISCO (Fieldbus Intrinsically Safe Concept) standards Capable of connecting up to eight intrinsically safe FISCO field devices with an explosion protection rating of Ex-ia, it links seamlessly to an intrinsically safe fieldbus segment of the same protection type.

Additionally, this unit supports various earthing configurations, such as both multi-point and single-point screen earthing, in alignment with the standards established by Profibus PA and Foundation Fieldbus.

Features and Benefits:

•Rated for use in explosive areas (Zone 1 and Zone 2).

•Supports connection of up to eight intrinsically safe devices.

•Compatible with multi-point and single-point earthing concepts.

•Fieldbus systems: Profibus PA and Foundation Fieldbus.

Specifications:
