Description:

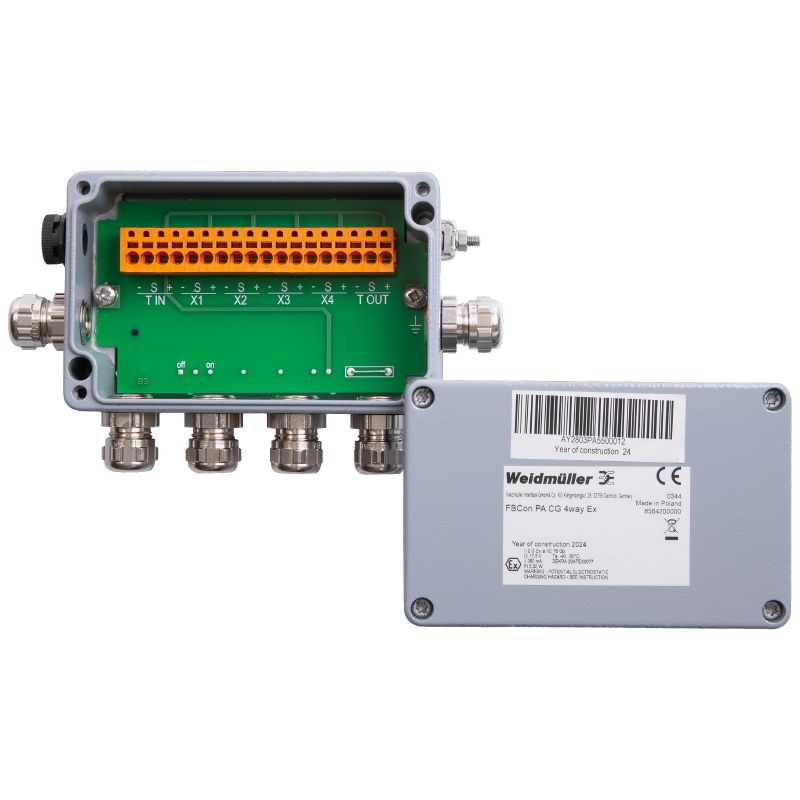

Experience reliable performance with this passive field distributor designed specifically for Profibus PA and Foundation Fieldbus H1 systems Certified for use in explosive environments rated as Zone 1 or Zone 2, it adheres to the Fieldbus Intrinsically Safe Concept (FISCO) This device can connect up to eight intrinsically safe Ex-ia field devices within a compatible fieldbus segment, all while ensuring optimal explosion protection.

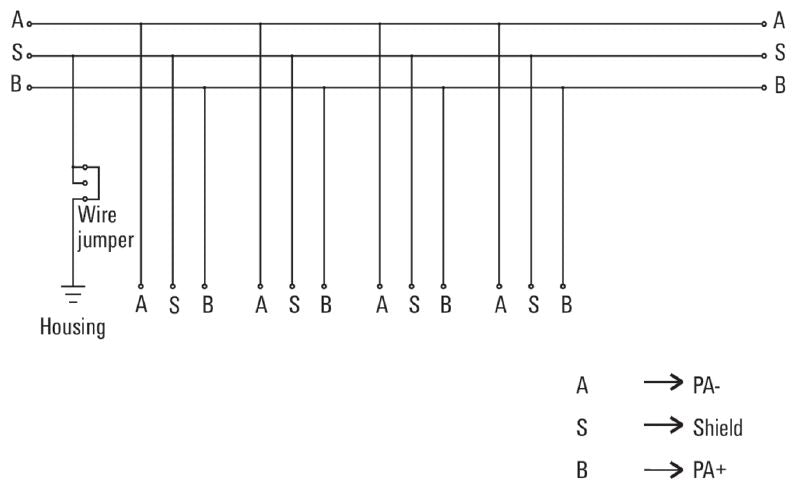

Furthermore, it supports various earthing strategies, including both multi-point and single-point screen earthing, complemented by guidelines referenced in the Profibus PA and Foundation Fieldbus documentation.
Features and Benefits:
•Approved for explosive risk zones Zone 1 or Zone 2.
•Supports earthing concepts with multi-point or single-point screen earthing.
•Connects up to eight intrinsically safe FISCO field devices.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 80 mm |
| Length | 125 mm |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium AISi12 |
| Number of contact sockets | 4 |
| Number of poles | 3 |
| Pollution severity | 2 |
| Protection degree | IP66 |
| Type of distribution | 4-way distributor EEx |
| Type of mounting | surface-mounted, front mounting |
