Description:
This passive field distributor is designed for fieldbus systems like Profibus PA and Foundation Fieldbus H1, offering robust protection with IP66 and IP67 ratings It has the capability to link up to eight field devices within a single fieldbus segment Additionally, it supports versatile earthing configurations, accommodating both multi-point and single-point screen earthing as outlined in the relevant guidelines, making it an essential component for efficient system integration.
Features and Benefits:
•Standard distributor with bus termination (active).
•IP65 and IP66 rated.

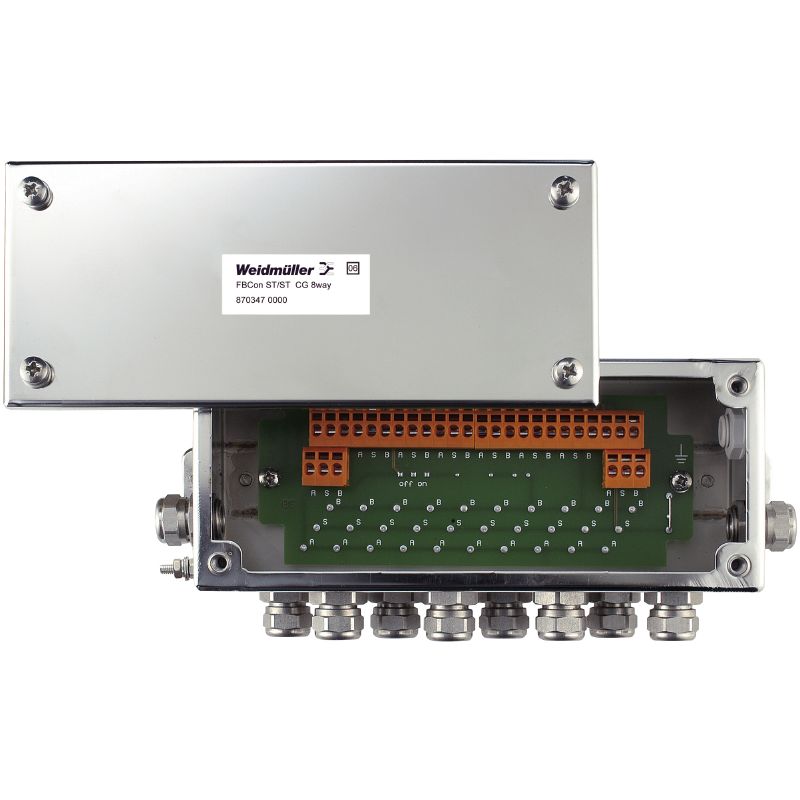

•Polished stainless steel housing that is rust-proof.
•Surface-mounted installation.
Specifications:
| Depth | 86.5 mm |
| Height | 58 mm |
| Width | 80 mm |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Round |
| Cable glands | Stainless steel cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Design of housing | With pressure compensation element |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Protection degree | IP65, IP66 |
| Type of distribution | 8-way distributor |
| Type of mounting | surface-mounted |
