Description:

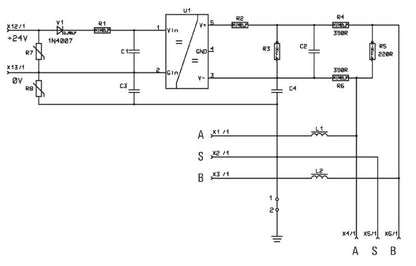

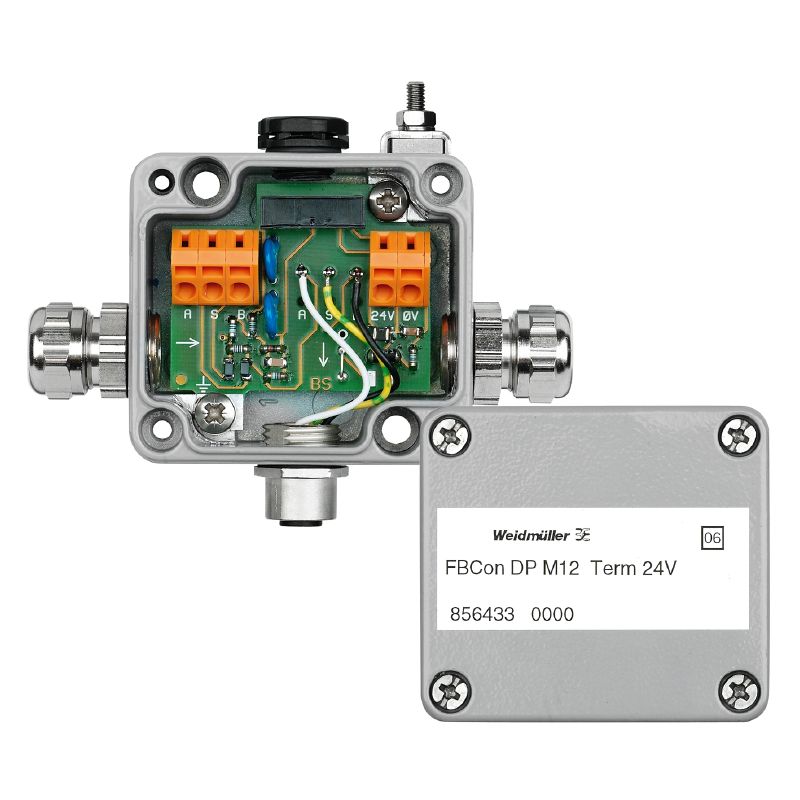

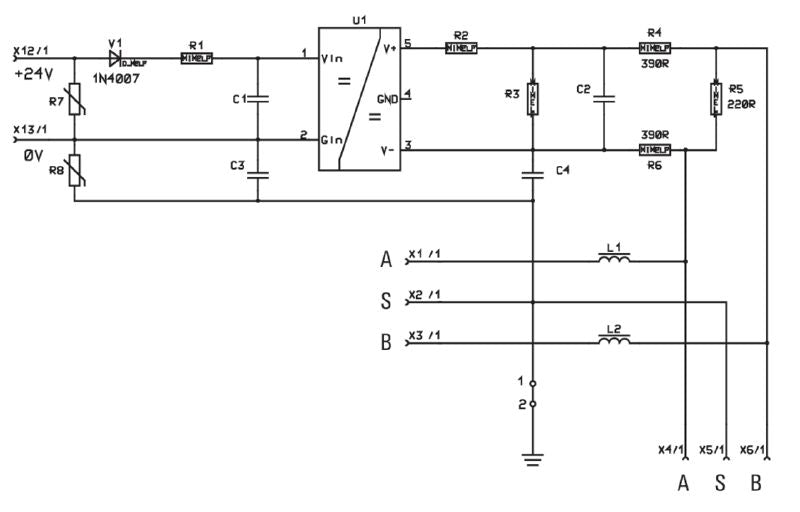

Introducing a specialized active terminating resistor tailored for the Profibus PA fieldbus system This robust device meets IP66/IP67 protection class standards, ensuring durability in various conditions It facilitates the connection of a single field device to one fieldbus segment, while also supporting comprehensive earthing strategies These can be implemented through either multi-point or single-point screen earthing, in line with Profibus specifications, providing flexibility and reliability for your network setup.
Features and Benefits:
•Complies with RoHS and has exemption statuses.
•Constructed with an aluminium housing that is stove enamelled.
•Features a pressure compensation element in the housing design.
•Includes a brass cable gland for cable entry.
•Can accommodate a conductor outer diameter ranging from 6.5 mm to 9.5 mm.
•Designed for surface-mounted installation.
•Provides a degree of protection rated at IP65 and IP66.
•Used in connecting field devices with fieldbus segments.
•Suitable for Profibus-DP and Modbus RS485 systems.
Specifications:
| Depth | 34 mm |
| Height | 34 mm |
| Width | 64 mm |
| Net weight | 255 g |
| Storage temperature | -25 °C...75 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| Clamping range, min | 4 mm² |
| Clamping range, max | 6 mm² |
| Bus system | Profibus-DP, Modbus RS485 |
| Number of poles | 3 |
| Operating voltage | 30 V DC |
| Pollution severity | 3 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
