Description:

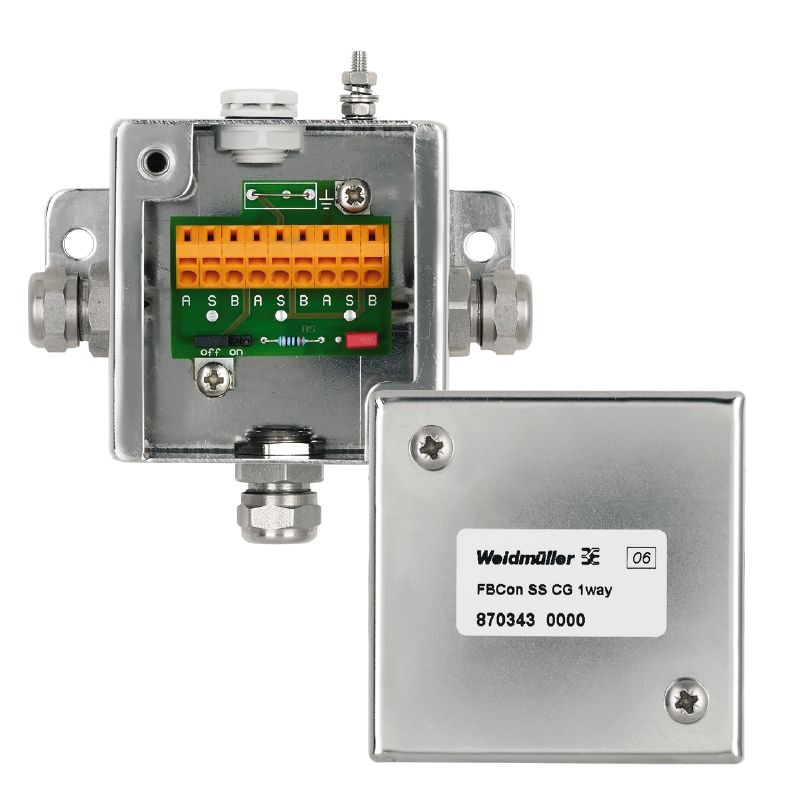

This passive distributor is expertly crafted for fieldbus systems, specifically tailored for Profibus PA and Foundation Fieldbus H1 connectivity It boasts an impressive protection rating of IP66/IP67, ensuring reliable performance in challenging environments Capable of linking up to eight field devices to a fieldbus segment, this unit also accommodates a variety of earthing strategies, in line with the operational guidelines for both Profibus PA and Foundation Fieldbus systems.
The distributor is an essential component for seamless data communication in industrial settings.
Features and Benefits:
•Active one-way distribution.
•IP65 and IP66 protection ratings.

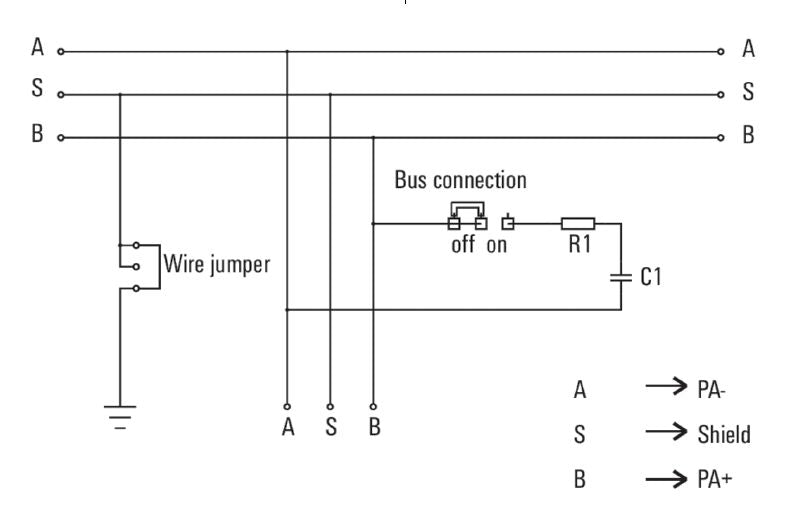

•Supports multiple earthing concepts.
Specifications:
| Depth | 47.5 mm |
| Height | 36 mm |
| Width | 58 mm |
| Net weight | 451 g |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5% to 95%, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-PA and Foundation Fieldbus |
| Cable entry | Round |
| Cable glands | Stainless steel cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Design of housing | With pressure compensation element |
| Housing main material | Stainless steel and aluminum |
| Housing surface | polished |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Protection degree | IP65 and IP66 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
