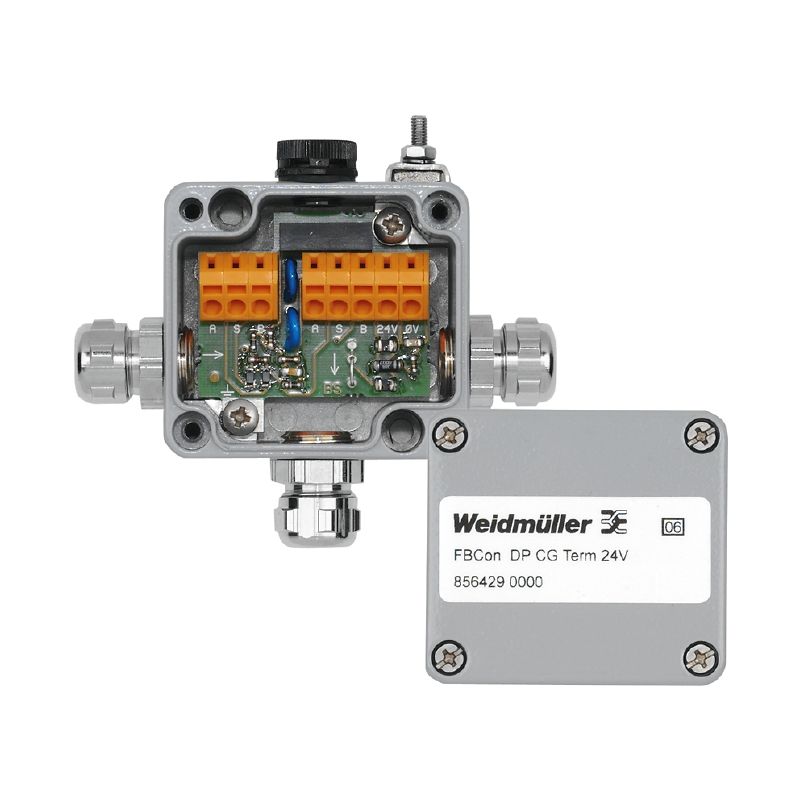

8564290000 - IP66/IP67 Profibus Active Terminating Resistor for Field Devices
8564290000 - IP66/IP67 Profibus Active Terminating Resistor for Field Devices
SKU: SKU: 8564290000 Download PDF
- 8564290000 - IP66/IP67 Profibus Active Terminating Resistor for Field Devices
- 8564290000 - IP66/IP67 Profibus Active Terminating Resistor for Field Devices
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Ensure optimal performance in your Profibus PA fieldbus system with this active terminating resistor Designed to meet the protection standards of IP66 and IP67, it allows for seamless connection of a single field device to any fieldbus segment This versatile component also supports various earthing concepts, adhering to the guidelines set forth by Profibus.
Features and Benefits:
•Complies with RoHS and REACH regulations.
•Designed for use in both Profibus-DP and Modbus RS485 bus systems.
•Supports multi-point and single-point screen earthing concepts.
•Constructed with a pressure compensation element.
•Suitable for fieldbus systems and connecting field devices.
Specifications:
| Depth (mm) | 34 |
| Height (mm) | 34 |
| Width (mm) | 64 |
| Storage temperature (°C) | -25 to 75 |
| Ambient temperature (°C) | -40 to 80 |
| Operating temperature (°C) | -40 to 80 |
| Humidity (% range) | 5 to 95 |
| Clamping range (min, mm²) | 4 |
| Clamping range (max, mm²) | 6 |
| Conductor O.D. (max, mm) | 9.5 |
| Conductor O.D. (min, mm) | 6.5 |
| Number of poles | 3 |
| Pollution severity | 3 |
| Type of mounting | surface-mounted |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium |
| Operating voltage U max (DC) | 30 |
