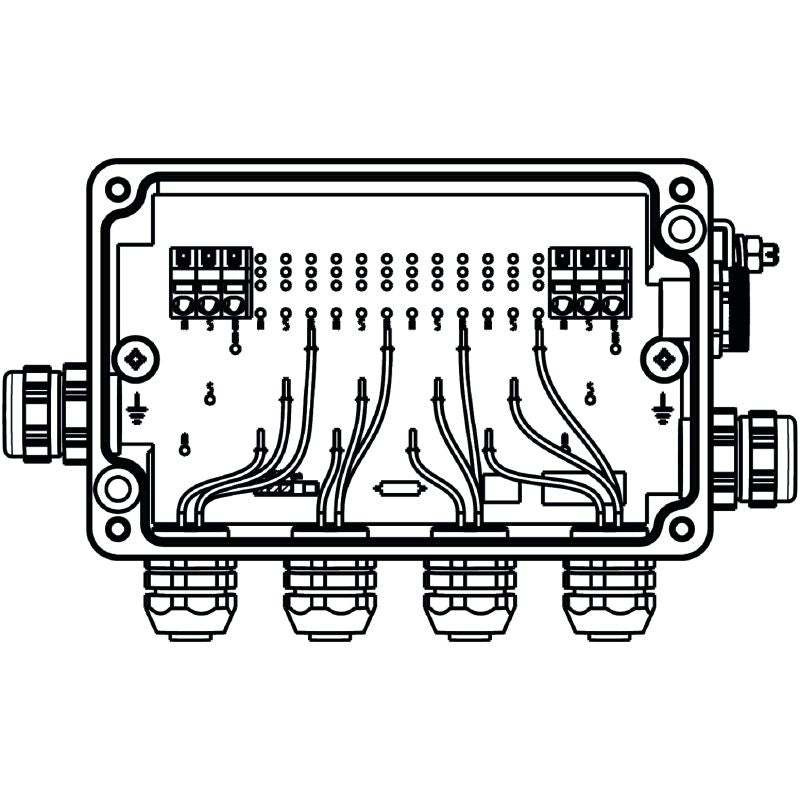

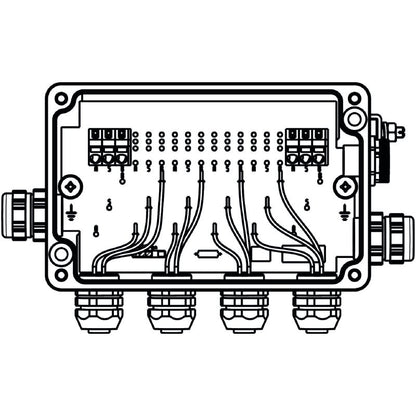

8564080000 - IP66 4-Way Fieldbus Distributor for Profibus & Foundation H1
8564080000 - IP66 4-Way Fieldbus Distributor for Profibus & Foundation H1
SKU: SKU: 8564080000 Download PDF
- 8564080000 - IP66 4-Way Fieldbus Distributor for Profibus & Foundation H1
- 8564080000 - IP66 4-Way Fieldbus Distributor for Profibus & Foundation H1
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your fieldbus connectivity with this 4-way active distributor, specifically crafted for systems like Profibus PA and Foundation Fieldbus H1 It adheres to IP66/IP67 protection standards, ensuring durability in demanding environments Capable of connecting up to eight field devices within a fieldbus network, this distributor offers flexibility with both multi-point and single-point screen earthing configurations, complying with the guidelines for the relevant fieldbus systems.
Enhance your network’s efficiency today!.
Features and Benefits:
•Compliant with RoHS exemption.
•Includes brass cable gland and aluminum housing with powder coating.
•Supports a clamping range from 4 mm² to 6 mm².
•Designed for surface mounting.
•Can withstand temperatures from -40 °C to 80 °C.
•Protection degree rated at IP65 and IP66.
•Fieldbus systems.
•Connecting multiple field devices.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 80 mm |
| Net weight | 567 g |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5-95%, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Branch line M12, Round |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium (AISi12) |
| Number of contact sockets | 4 |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Pollution severity | 3 |
| Type of distribution | 4-way distributor |
| Type of mounting | surface-mounted |
