Description:

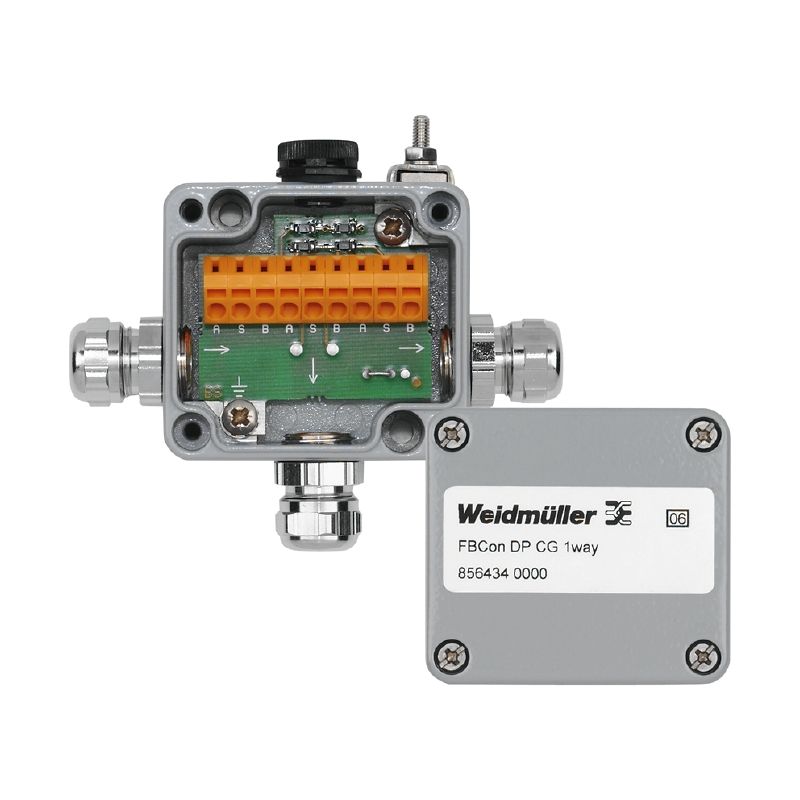

Introducing a passive field distributor specifically crafted for the Profibus PA fieldbus system Built to withstand challenging conditions, this device adheres to IP66 and IP67 protection standards, guaranteeing reliability in harsh environments It is designed to seamlessly connect a single field device to a dedicated fieldbus segment while following the earthing practices outlined in the Profibus specifications.
Features and Benefits:
•Complies with RoHS and REACH standards.
•Passive distributor for fieldbus system Profibus PA.
•Supports various earthing concepts.
•Stove enamelled aluminium housing.
•IP65 and IP66 protection degrees.
Specifications:
| Depth | 34 mm |
| Height | 34 mm |
| Width | 64 mm |
| Net weight | 262 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-DP, Modbus RS485 |
| Cable entry | Brass cable gland, Round |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Number of poles | 3 |
| Operating voltage | 30 V DC |
| Pollution severity | 3 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
