Description:

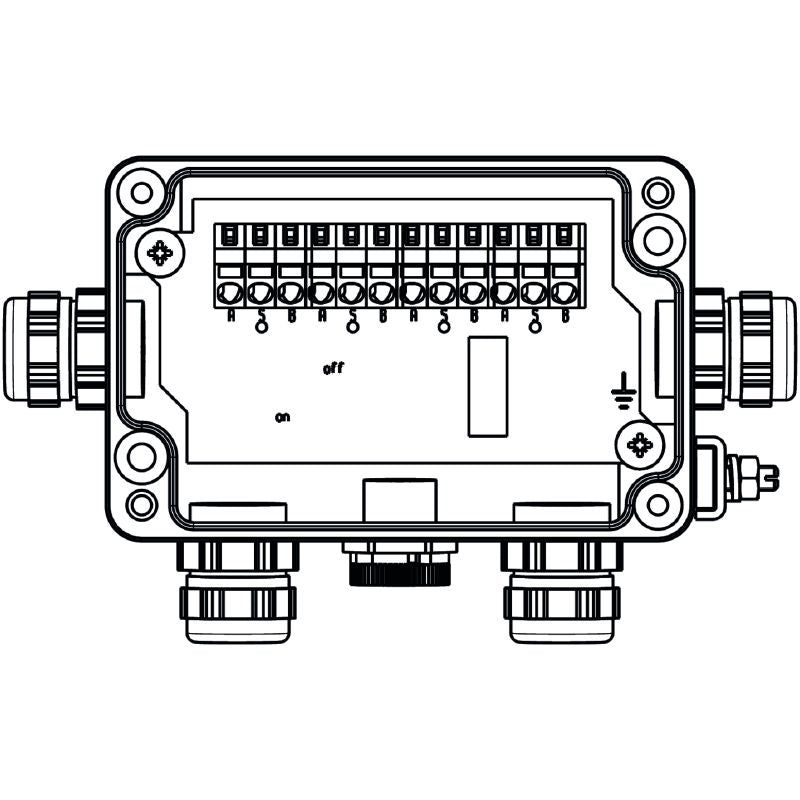

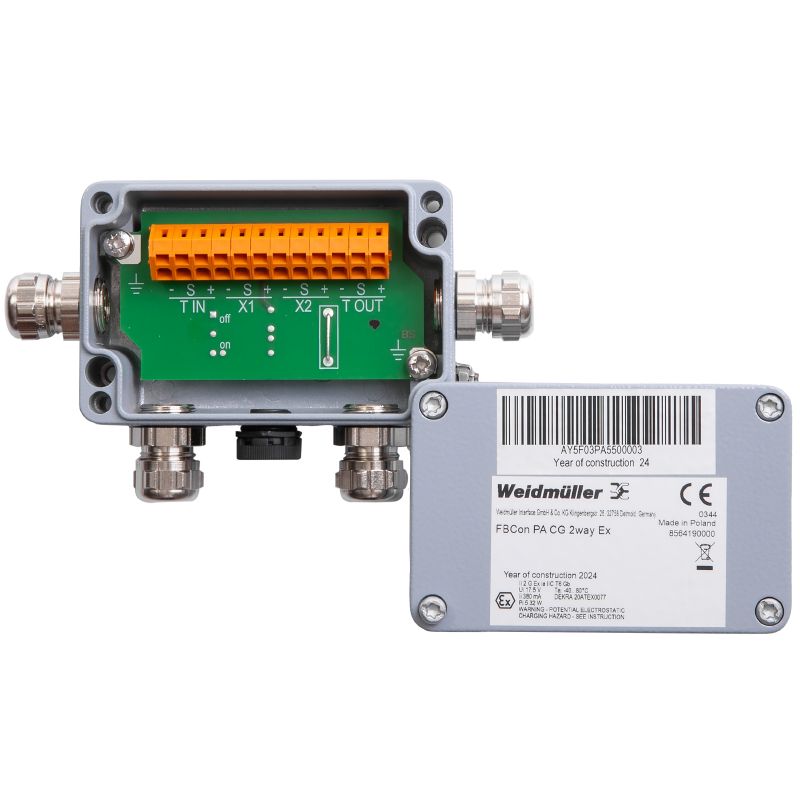

Introducing this passive field distributor, expertly crafted for use with Profibus PA and Foundation Fieldbus H1 systems This device is engineered for environments classified as Zone 1 or Zone 2, ensuring maximum safety in hazardous locations It boasts FISCO certification (Fieldbus Intrinsically Safe Concept), enabling the seamless connection of up to eight intrinsically safe Ex-ia field devices, all operating within a secure fieldbus segment.

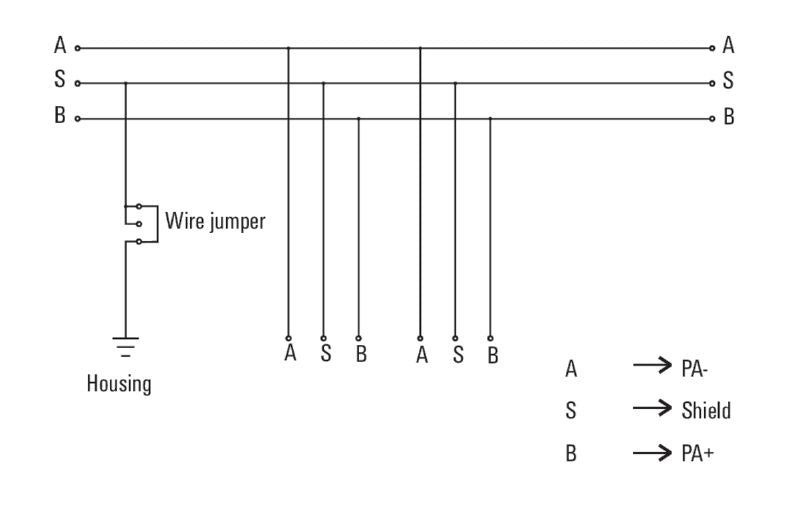

Moreover, the distributor supports various earthing configurations, allowing for either multi-point or single-point screening, in line with the specific requirements of the respective fieldbus systems.
Features and Benefits:
•Approved for explosive risk zones in Zone 1 or Zone 2.
•Connects up to eight intrinsically safe FISCO field devices.
•Supports various earthing concepts.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 64 mm |
| Length | 98 mm |
| Storage temperature | -40 °C to 80 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | Spur line with cable gland |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium AISi12 |
| Number of contact sockets | 2 |
| Number of poles | 3 |
| Pollution severity | 2 |
| Protection degree | IP66 |
| Type of distribution | 2-way distributor EEx |
| Type of mounting | surface-mounted, front mounting |
