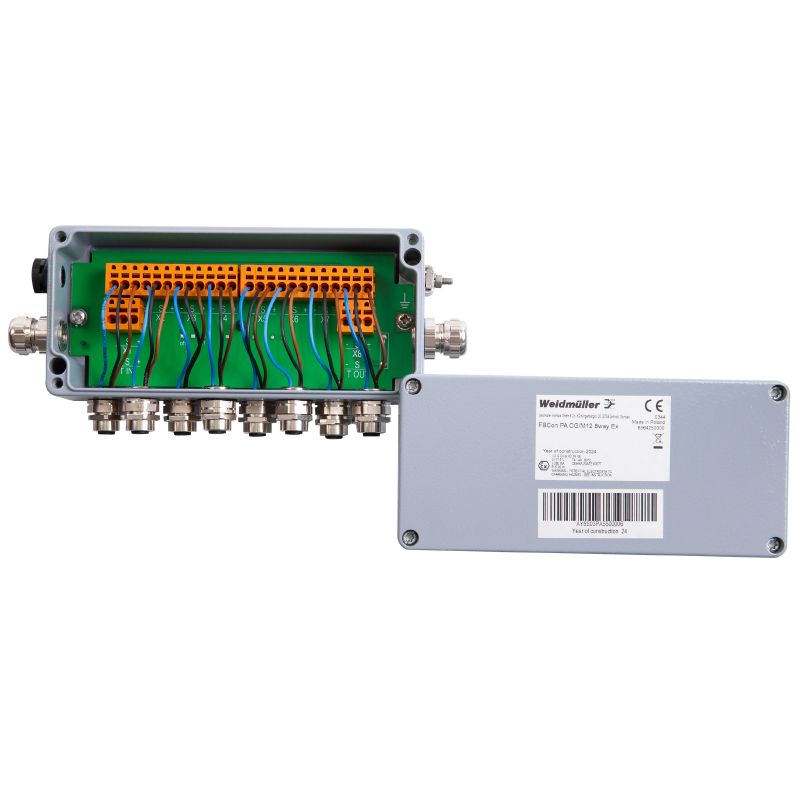

Description:
Introducing an efficient passive field distributor compatible with Profibus PA and Foundation Fieldbus H1 systems This unit is certified for use in hazardous areas, specifically classified as Zone 1 or Zone 2 Adhering to the Fieldbus Intrinsically Safe Concept (FISCO), it can accommodate up to eight intrinsically safe field devices marked as Ex-ia Additionally, the distributor supports various earthing strategies, including both multi-point and single-point screen earthing, as outlined in the relevant documentation for Profibus and Foundation Fieldbus.
Features and Benefits:
•Approved for explosive risk areas in Zone 1 or Zone 2.
•Supports up to eight intrinsically safe FISCO field devices.
•Compliant with IEC 61508.
•Constructed from aluminium housing.
•IP66 protection degree.
Specifications:
| Depth | 34 mm |
| Height | 58 mm |
| Width | 80 mm |
| Length | 175 mm |
| Net weight | 894 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Number of contact sockets | 8 |
| Number of poles | 3 |
| Pollution severity | 2 |
| Type of distribution | 8-way distributor EEx |
| Type of mounting | surface-mounted, front mounting |
