Description:
Introducing a versatile passive field distributor designed specifically for Profibus PA and Foundation Fieldbus systems This unit is ideal for use in hazardous environments rated as Zone 1 or Zone 2 and boasts certification under the FISCO concept for intrinsically safe operations Capable of connecting up to eight intrinsically safe Ex-ia field devices, it ensures compatibility with an intrinsically safe fieldbus segment of the same type.

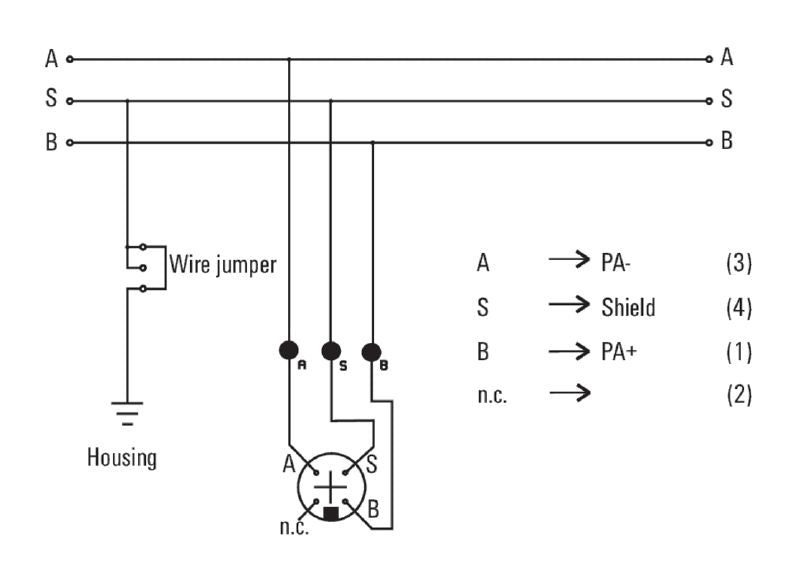

Additionally, the distributor supports various earthing configurations in line with fieldbus system regulations, making it a reliable choice for your installation needs.
Features and Benefits:
•Suitable for explosive environments.
•Connects up to eight field devices.
•Supports various earthing concepts.
•Designed for Profibus PA and Foundation Fieldbus systems.
Specifications:
| Depth | 34 mm |
| Height | 37 mm |
| Width | 58 mm |
| Length | 64 mm |
| Net weight | 257 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium, AISi12 |
| Number of contact sockets | 1 |
| Number of poles | 3 |
| Pollution severity | 2 |
| Protection degree | IP66 |
| Type of distribution | 1-way distributor EEx |
| Type of mounting | surface-mounted, front mounting |
| Approvals | ROHS Compliant, certified according to FISCO |
