8564310000 - IP66 Passive 8-Way Fieldbus Distributor for Profibus & FF
8564310000 - IP66 Passive 8-Way Fieldbus Distributor for Profibus & FF
SKU: SKU: 8564310000 Download PDF
- 8564310000 - IP66 Passive 8-Way Fieldbus Distributor for Profibus & FF
- 8564310000 - IP66 Passive 8-Way Fieldbus Distributor for Profibus & FF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

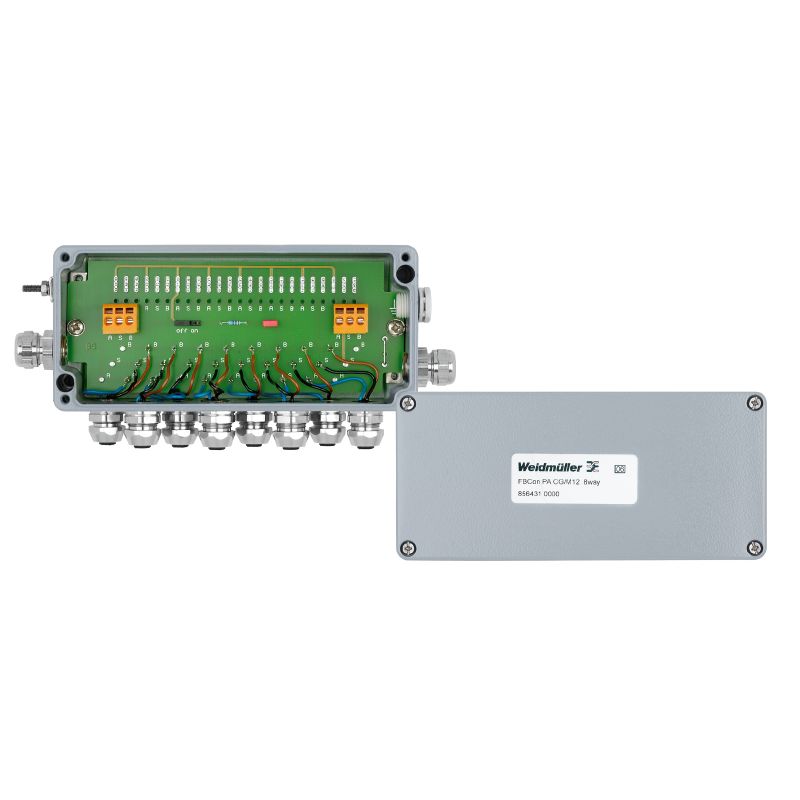

Introducing a robust passive field distributor tailored for fieldbus systems, including Profibus PA and Foundation Fieldbus H1 With an impressive IP66/IP67 protection class, this distributor is built to last It allows connections for up to eight field devices with a fieldbus segment and supports earthing through both multi-point and single-point screen earthing, adhering to the standards set by Profibus PA and Foundation Fieldbus.
Perfect for enhancing your field communication systems.
Features and Benefits:
•8-way distributor.
•Compliant with protection class IP65 and IP66.
•Supports earthing concepts.
•Designed for robust fieldbus applications.
Specifications:
| Depth | 34 mm |
| Height | 58 mm |
| Width | 80 mm |
| Net weight | 770 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system | Profibus-PA, Foundation Fieldbus |
| Cable entry | Branch line M12, Round |
| Cable glands | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 6.5 mm |
| Connection type PE | M12 spur line |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium, AISi12 |
| Housing surface | powder coating |
| Number of poles | 3 |
| Operating voltage | 30 V |
| Operating voltage U max | 30 V DC |
| Pollution severity | 3 |
| Protection degree | IP65, IP66 |
| Type of mounting | surface-mounted |
