Description:

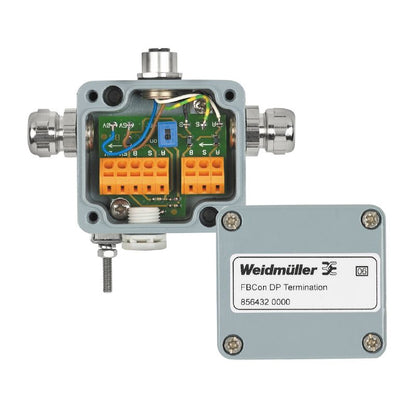

Introducing the FBCON DP M12 TERM 5V, a specialized active terminating resistor crafted for the Profibus PA fieldbus system This product is compliant with IP66/IP67 standards, ensuring robust protection against dust and water It effectively links a field device to a fieldbus segment and accommodates various earthing strategies as specified by Profibus guidelines, making it a reliable choice for your connectivity needs.
Features and Benefits:
•Compliant with RoHS and offers certain exemptions.
•Supports various earthing concepts.
•Designed for surface mounting.
•Used in fieldbus systems like Profibus PA.
Specifications:
| Depth | 34 mm |
| Height | 34 mm |
| Width | 64 mm |
| Net weight | 218 g |
| Storage temperature | -25 °C to 75 °C |
| Ambient temperature | -40 °C to 80 °C |
| Operating temperature | -40 °C to 80 °C |
| Humidity | 5 to 95%, no condensation |
| Clamping range min. | 4 mm² |
| Clamping range max. | 6 mm² |
| Bus system | Profibus-DP, Modbus RS485 |
| Cable entry | Brass cable gland |
| Conductor O.D. max | 9.5 mm |
| Conductor O.D. min | 6.5 mm |
| Connection type PE | M12 spur line |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium |
| Housing surface | stove enamelled |
| Number of poles | 3 |
| Operating voltage | 30 V DC |
| Pollution severity | 3 |
| Protection degree | IP65, IP66 |
| Type of distribution | Terminator |
| Type of mounting | surface-mounted |
