1963300000 - SC-Duplex FO Connector for IP67, Zinc Housing, Single-Mode (Pack of 10)

1963300000 - SC-Duplex FO Connector for IP67, Zinc Housing, Single-Mode (Pack of 10)

SKU: 1963300000   Download PDF

Select a Variant:
  • 1963300000 - SC-Duplex FO Connector for IP67, Zinc Housing, Single-Mode (Pack of 10)
Qty:
Now $813.22   Web pricing policy
BEFORE   $0.00 Now $813.22 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the FO connector, a reliable SC-Duplex single-mode variant crafted specifically for IP67-rated environments This connector adheres to ROHS standards and features a durable singlemode fiber type Constructed with a robust zinc diecast housing and a PA material insert, it is engineered for high performance Accommodating a sheath diameter ranging from 5 mm to 10 mm, this connector is built to offer exceptional durability and reliability in a variety of applications.

Features and Benefits:

    •Compliant with ROHS and REACH regulations.

    •Insertion loss of 0.5 dB for singlemode.

    •Protection degree of IP67.

Specifications:

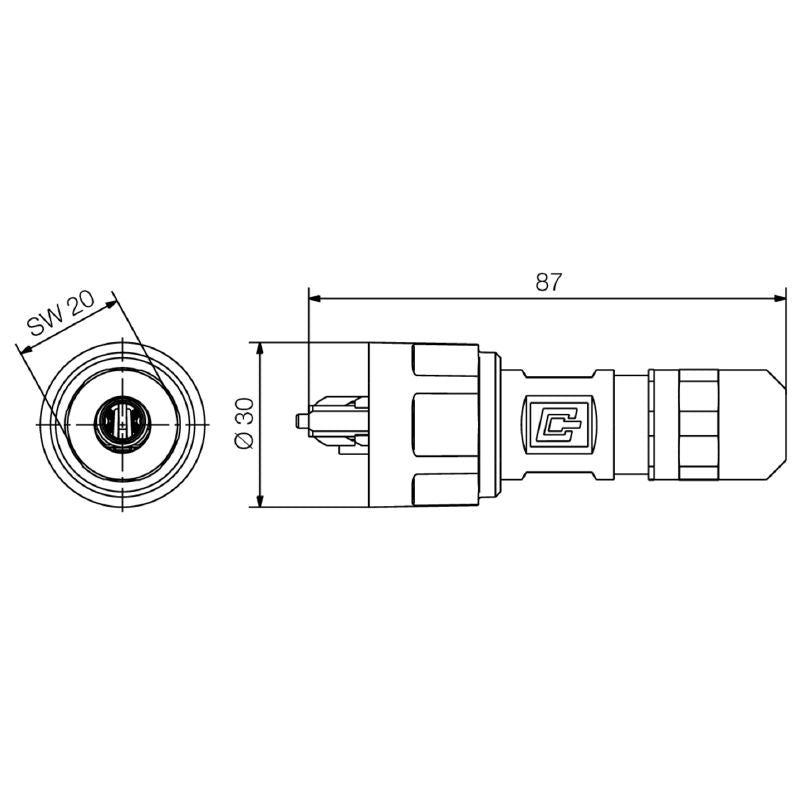

 Depth 87 mm
 Height 30 mm
 Width 30 mm
 Operating temperature -40 °C...70 °C
 Plugging cycles 500
 Return loss (attenuation) 40 dB singlemode; 30 dB multimode
 Connector standard IEC 61076-3-106 Var. 1, IEC 61754-24
 Sheath diameter, max. 10 mm
 Sheath diameter, min. 5 mm
 ETIM 6.0 EC001122
 ECLASS 9.0 19-17-01-22
