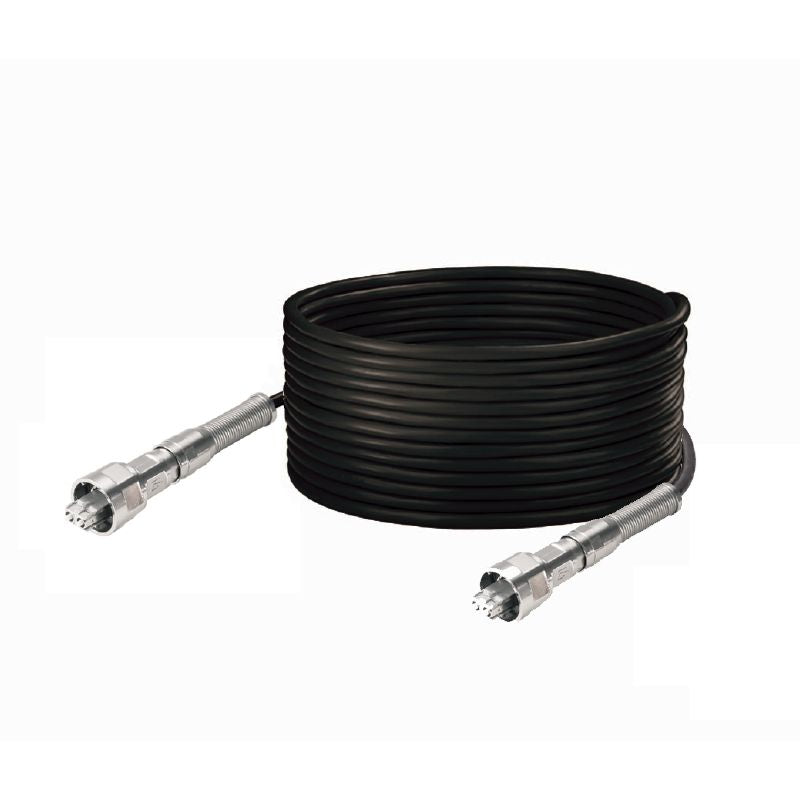

1318013000 - 300m SC IP67 Bayonet Dragline Cable, 62.5µm, PUR Material

1318013000 - 300m SC IP67 Bayonet Dragline Cable, 62.5µm, PUR Material

SKU: 1318013000   Download PDF

Select a Variant:
  • 1318013000 - 300m SC IP67 Bayonet Dragline Cable, 62.5µm, PUR Material
Qty:
Now $2,038.73   Web pricing policy
BEFORE   $0.00 Now $2,038.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our premium dragline cable, constructed with a robust SC IP 67 bayonet V01 metal design This cable features a fiber diameter of 625 µm and is made from durable PUR material, ensuring reliable performance With a generous length of 300 meters, it's perfect for various applications where high-quality connectivity is essential.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Environmental product compliance.

    •Can operate in varied temperature ranges: storage from -55 °C to 85 °C, operating from -40 °C to 85 °C, and installation from -55 °C to 60 °C.

    •Suitable for multimode applications.

Specifications:

 Fibre type GOF, Multimode, OM1
 Core diameter 62.5 µm
 Sheath diameter 7.5–8 mm
 Bending cycles 100,000
 Min. bending radius, once only 25 mm
 Min. bending radius, repetitive 70 mm
 Insertion loss ≤ 0.4 dB
 Return loss (attenuation) ≥ 30 dB
 Attenuation 2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
 Bandwidth 200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
 Plug left SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded
 Plug right SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded
 Order No. 1318013000
 GTIN (EAN) 4050118170726
