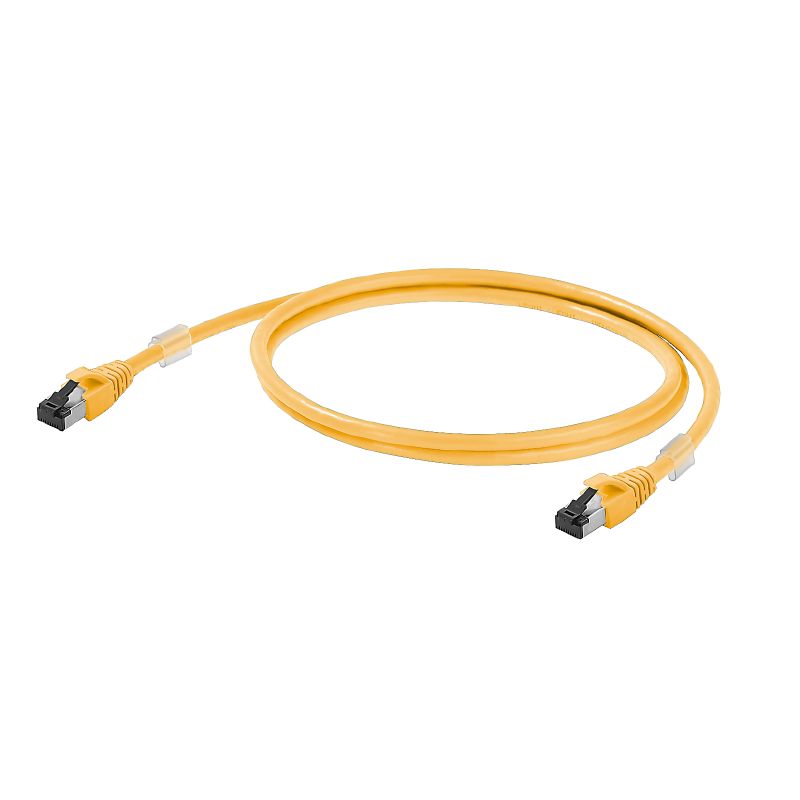

1251580400 - 40m Cat.6A RJ45 Patch Cable, LSZH Sheath, IP 20

SKU: SKU: 1251580400 Download PDF

Select a Variant:

1251580400 - 40m Cat.6A RJ45 Patch Cable, LSZH Sheath, IP 20

SET THE QTY:

Now $92.02 Web pricing policy

~~BEFORE $0.00~~ Now $92.02 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a 40-meter patch cable specifically crafted for RJ45 connections, ensuring seamless compatibility with IP 20 It excels in performance, supporting Cat6A for lengths up to 20 meters, while accommodating Class EA standards for longer distances The cable features a low smoke zero halogen (LSZH) sheath, making it a safe and effective choice for various networking needs.

Features and Benefits:

•Compliant with RoHS regulations without exemptions.

•Halogen-free according to IEC 60754-2 standards.

•Utilizes a complete shielding system with copper braiding.

•Plug connectors meet IEC 60603-7-51 standards.

•Twisted pair cable core arrangement.

•Eight wires with a specific color sequence for enhanced performance.

Specifications:

Length	40m
Net weight	1,486g
Current-carrying capacity at 50 °C	1A
Operating voltage	50 V DC
Operating voltage (UL rating)	30 V AC / 42.4 V DC
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Capacity at 1 kHz	46 nF/km
Plug left	RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right	RJ45, IP20, male contact, straight, plug, Plastic, shielded
Sheath diameter, max.	5.9 mm
Sheath diameter, min.	5.5 mm
Electrical properties of cable	{'Delay skew': '2.5 ns/100m', 'Coupling resistance at 10 MHz': '5 mΩ'}
Installation temperature	0 °C...50 °C
Storage temperature	-20 °C...60 °C
Operating temperature	-20 °C...60 °C
