Product Information

Description:

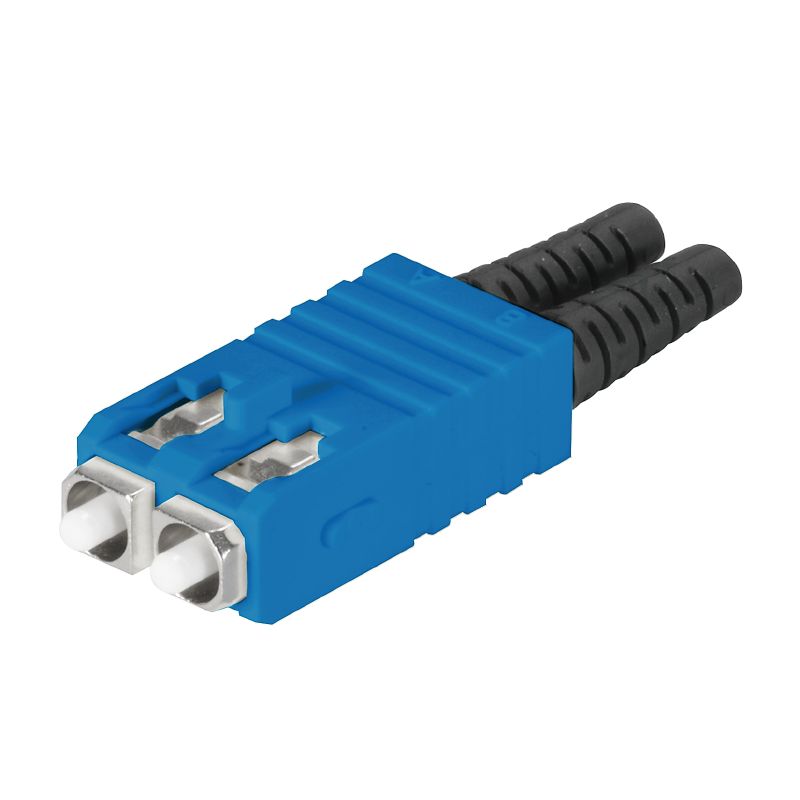

Introducing the SCRJ singlemode connector, expertly crafted for a variety of connection types, utilizing methods such as gluing, crimping, or polishing This connector is equipped with a TPE dust protection cap to enhance its durability and ensure long-lasting performance Adhering to the IEC 61754-24 standard, it boasts a strong construction made from PC UL 94 V0 and zinc diecast materials, making it a reliable choice for your connection needs.

Features and Benefits:

•Bending protection sleeve material made of TPE.

•Dust protection cap material is TPE.

•Ferrule material is made from Zirconia.

•Cable pull-out force is a minimum of 100 N.

•Minimum insertion loss is ≤ 0.5 dB.

•Up to 1000 plugging cycles.

•Protection degree rated at IP20.

•Rust-proof stainless steel pressure spring material.

Specifications:

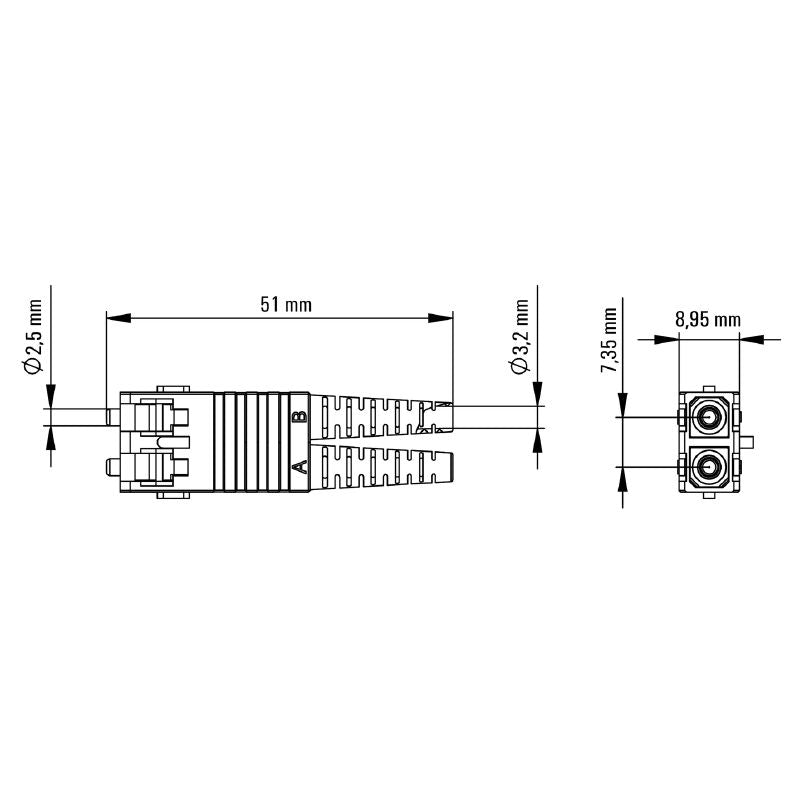

Depth (mm)	51
Height (mm)	14.7
Width (mm)	8.95
Operating temperature	-20 °C...80 °C
Humidity	0...93 % rel. humidity
Crimp barrel material	Copper, nickel-plated
Sheath diameter (max)	3 mm
Sheath diameter (min)	2.8 mm
Single conductor diameter (max)	1.4 mm
Single conductor diameter (min)	0.6 mm
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
REACH SVHC	Lead 7439-92-1
UL Certificate No.	E477798
Connector standard	IEC 61754-24
