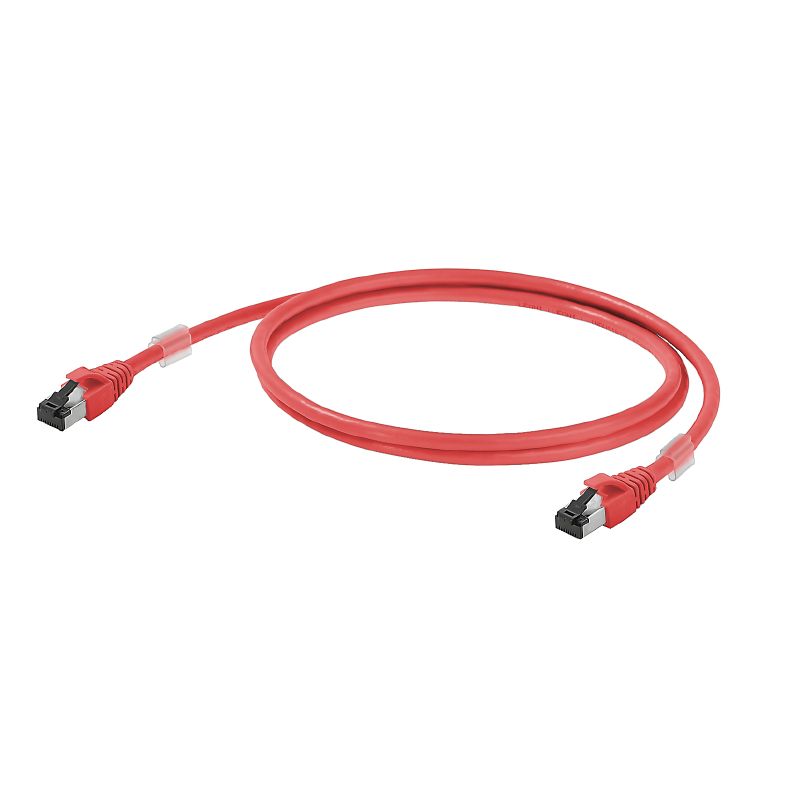

1166030250 - 25m LSZH Cat 6A RJ45 Patch Cable, IP20 Rated

SKU: SKU: 1166030250 Download PDF

Select a Variant:

1166030250 - 25m LSZH Cat 6A RJ45 Patch Cable, IP20 Rated

SET THE QTY:

Now $59.20 Web pricing policy

~~BEFORE $0.00~~ Now $59.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with this 25-meter patch cable, specifically designed for RJ45 applications It boasts an IP20 rating, making it suitable for various indoor environments Meeting Cat6A specifications for lengths under 20 meters and Class EA standards according to ISO/IEC 11801 2010 for longer runs, this cable guarantees high-performance networking Crafted from LSZH material, it promotes low smoke emission, ensuring safety and efficiency in your installations.

Features and Benefits:

•RoHS compliant without exemptions.

•Halogen-free as per IEC 60754-2 standards.

•Transmission rate capability of 10 Gbit/s.

•Operating voltage: 50 V DC.

•Connector standards adhering to IEC 60603-7-51.

Specifications:

Length:	25 m
Cable structure:	Twisted pair
Insulation:	PE
Number of wires:	8
Shielding:	S/FTP
Max. sheath diameter:	5.9 mm
Min. sheath diameter:	5.5 mm
Operating temperature:	-20 °C to 60 °C
Storage temperature:	-20 °C to 60 °C
Installation temperature:	0 °C to 50 °C
Current-carrying capacity at 50 °C:	1 A
Capacity at 1 kHz:	46 nF/km
Characteristic impedance:	100 ± 15 Ω at 1–100 MHz
Coupling attenuation up to 1000 MHz:	80 dB
Delay skew:	2.5 ns/100m
Resistance differential:	5 %
Test voltage: wire-wire-shield:	2.5 kV / DC for 2 sec
