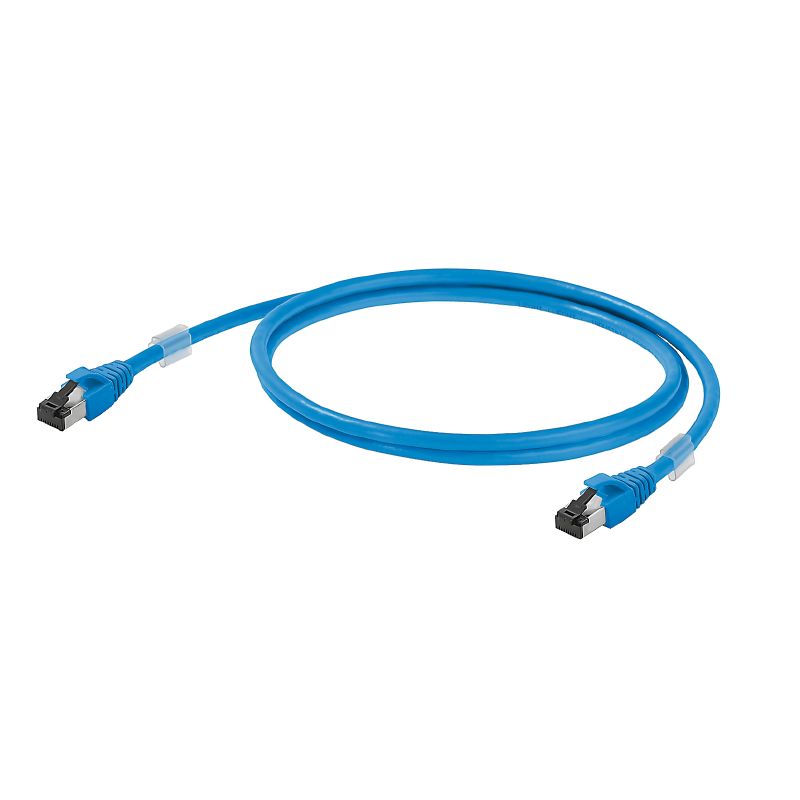

1165900090 - 9m RJ45 Patch Cable, Low Smoke Zero Halogen, IP20

1165900090 - 9m RJ45 Patch Cable, Low Smoke Zero Halogen, IP20

SKU: 1165900090 Download PDF

Variant:
  • 1165900090 - 9m RJ45 Patch Cable, Low Smoke Zero Halogen, IP20
Now $24.20
BEFORE   $0.00 Now $24.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this 9-meter patch cable, expertly designed for reliable performance Featuring RJ45 connectors that comply with IP20 standards, this cable is optimized for Cat6A usage over distances of less than 20 meters and adheres to Class EA specifications for longer reach, fully aligned with ISO/IEC 11801 2010 international standards Constructed from low smoke zero halogen (LSZH) materials, it prioritizes safety, making it an ideal choice for environments where flammable substances may be present.

Features and Benefits:

    •Twisted pair wire arrangement.

    •Complete shielding made from copper wiring.

    •Halogen-free materials used according to IEC 60754-2.

    •Shielding braid overlaps by 60%.

    •Utilizes aluminum foil shielding for wire pairs.

Specifications:

 Length 9 m
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Current-carrying capacity at 50 °C 1 A
 PoE / PoE+ conforming to IEEE 802.3at
 Connector standard IEC 60603-7-51
 Cross-section 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Insulation cross-section 1.04 mm
 Number of wires 8
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 2.5 ns/100m
 Operating voltage 50 V DC
 Test voltage: wire-wire-shield 2.5 kV / DC for 2 sec
