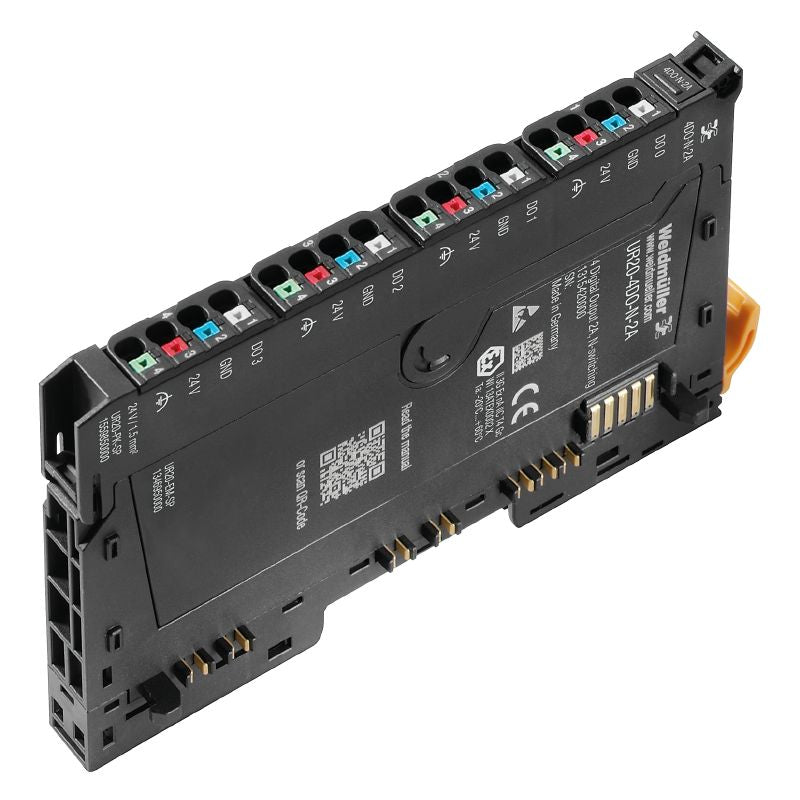

UR20-4DO-N-2A - 4-Channel IP20 Remote I/O Module, 2A Output, Compact Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a compact remote I/O module tailored for digital output within an IP20-rated housing This versatile module features four output channels, each capable of delivering up to 2 A, accommodating various operational needs efficiently Measuring 76 mm in depth, 120 mm in height, and 115 mm in width, it weighs only 87 grams Built to perform within a temperature range of -20 °C to 60 °C, this module also adheres to RoHS standards, ensuring compliance with environmental safety regulations.

Features and Benefits:

•IP20 rated for environmental protection.

•Short-circuit-proof and features a protective circuit with a response time of less than 100μs.

•Capable of diagnosing individual channels.

•Operates with a maximum supply voltage of 24 V DC.

•Supports multiple field bus protocols including PROFINET IRT and EtherCAT.

Specifications:
