Description:

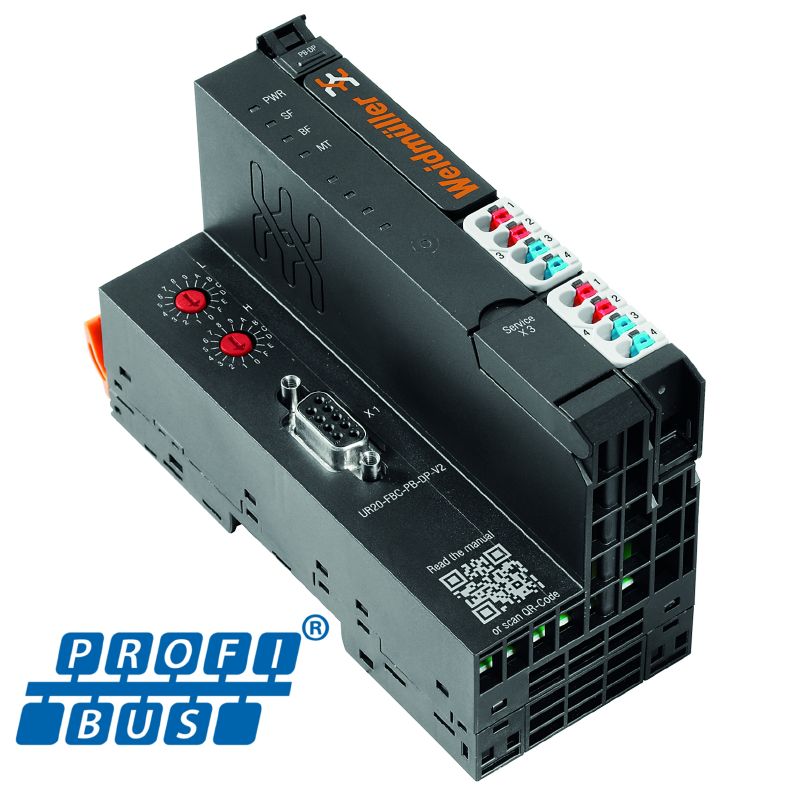

Introducing the UR20-FBC-PB-DP-V2, a reliable IP20 remote I/O fieldbus coupler engineered for seamless integration with PROFIBUS DP-V1 This device adheres to key industry standards, including ROHS compliance, and boasts several important certifications, such as cULus certificates E141197 and E223527 Designed for general applications, the coupler features compact dimensions of 76 mm in depth, 120 mm in height, and 52 mm in width, while weighing just 247 g.
It is built to perform across various temperature ranges for both operation and storage, meeting rigorous environmental product regulations.
Features and Benefits:
•IP20 rating.
•PUSH IN type connection.

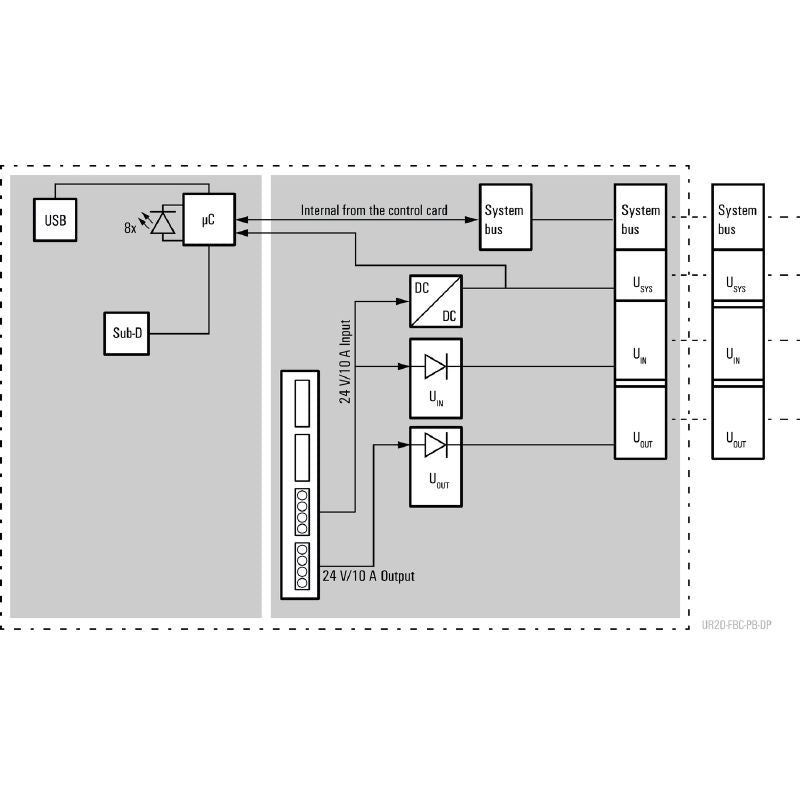

•Galvanic isolation between field and system bus.
•Includes matching end brackets.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 52 mm |
| Net weight | 247 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 10…90 %, no condensation |

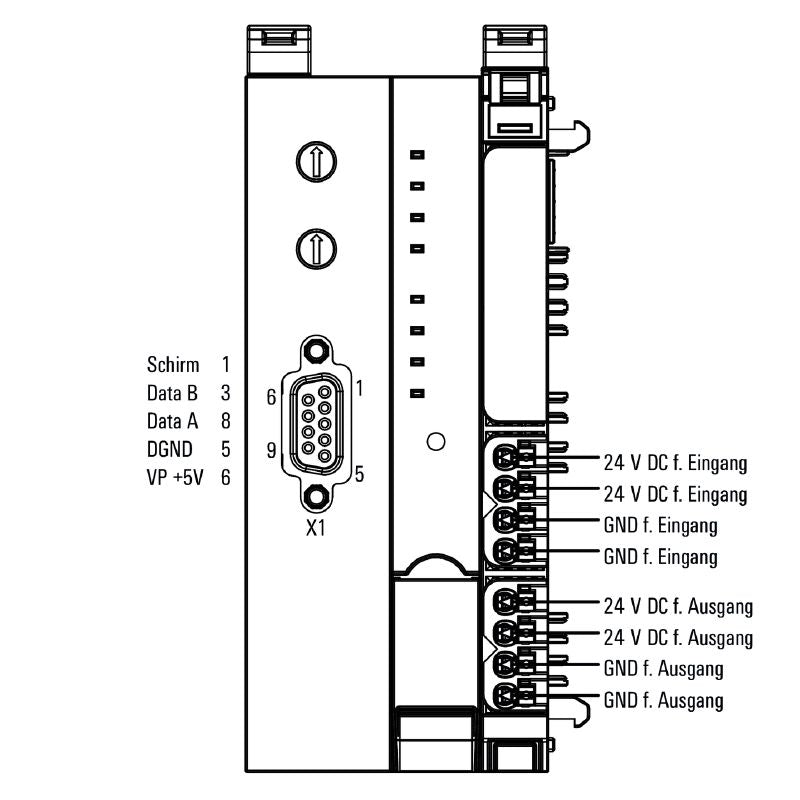

| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6 |
