1508090000 - IP20 Single-Channel Remote I/O Module with Push-In Connection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

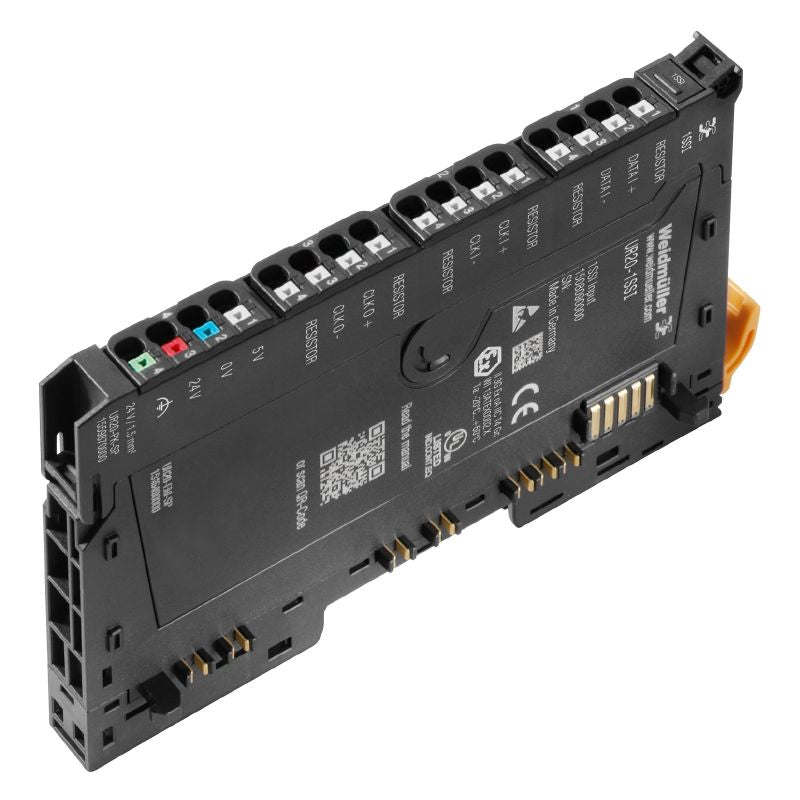

Introducing the UR20-1SSI remote I/O module, designed for reliable operation in IP20 environments This module features a user-friendly push-in connection for single-channel applications It meets essential compliance standards, including RoHS and cULus, ensuring safety and environmental responsibility With its strong digital input capabilities and built-in sensor supply, the module also offers reverse polarity protection for added security.

Moreover, it accommodates a diverse range of wire connections, facilitating efficient data communication across multiple field bus protocols Perfect for enhancing your industrial automation solutions.

Features and Benefits:

•Reverse polarity protection.

•Compatible with finely stranded wires between 0.14 mm² and 1.5 mm².

•Supports solid wire connections from 0.14 mm² to 1.5 mm².

•Operates under a humidity range of 10% to 95%, non-condensing.

•Designed to mount on a TS 35 rail.

•Shock resistant rated for 15 g over 11 ms.

•Vibration resistant across specific frequency ranges.

•Galvanic isolation of 500 V DC between current paths.
