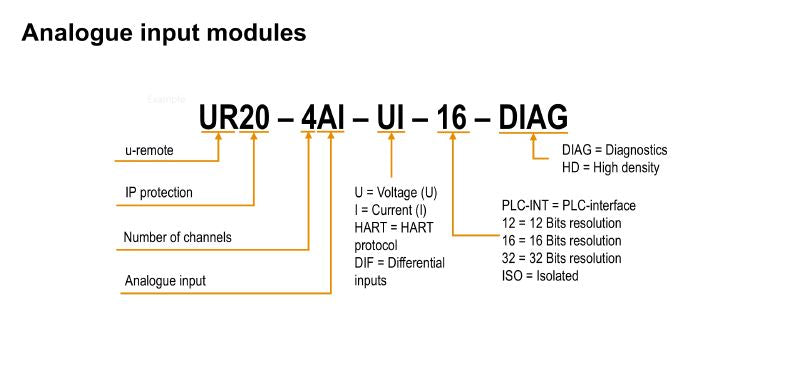

1315710000 - IP20 Remote I/O Module for Thermocouples, 0.2% Accuracy

Description:

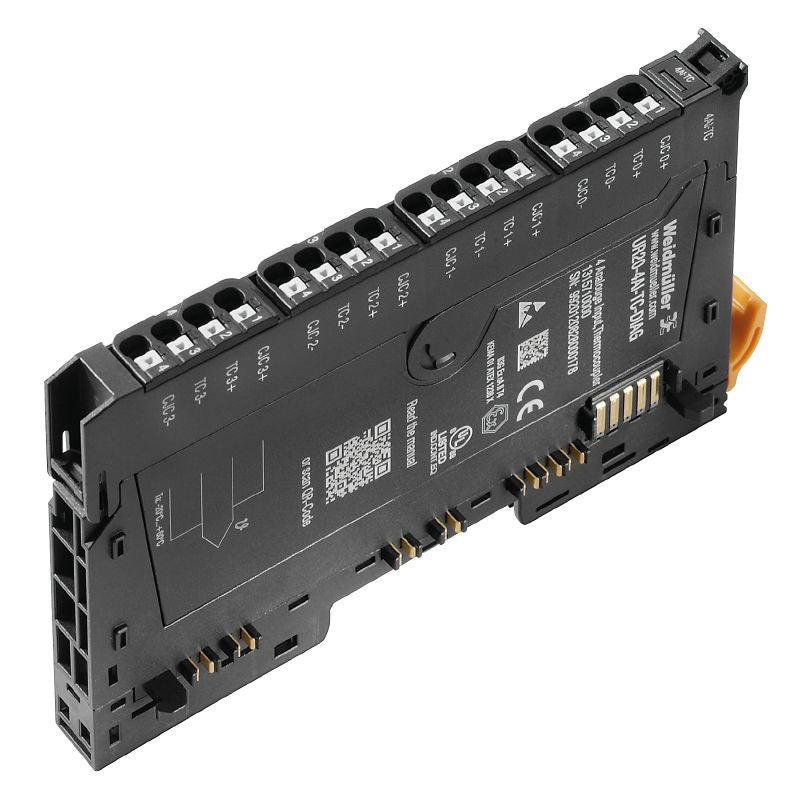

Introducing the UR20-4AI-TC-DIAG Remote I/O module, engineered to meet IP20 standards and expertly handle analog signals for thermocouple temperature measurements This module is compatible with a variety of thermocouple types, including J, K, T, B, N, E, R, S, L, U, C, and mV It boasts impressive features such as a high accuracy rating of 02% FSR and an adjustable conversion time that ranges from 36 to 240 ms.

Additionally, it includes internal and external cold junction compensation, plus individual channel diagnostics, ensuring reliable performance Designed to operate on a 24 V DC supply voltage, this module functions effectively within a temperature spectrum of -20 °C to +60 °C, making it suitable for tough industrial applications Its robust construction ensures it can withstand demanding environments while delivering reliable and precise temperature readings.

Features and Benefits:

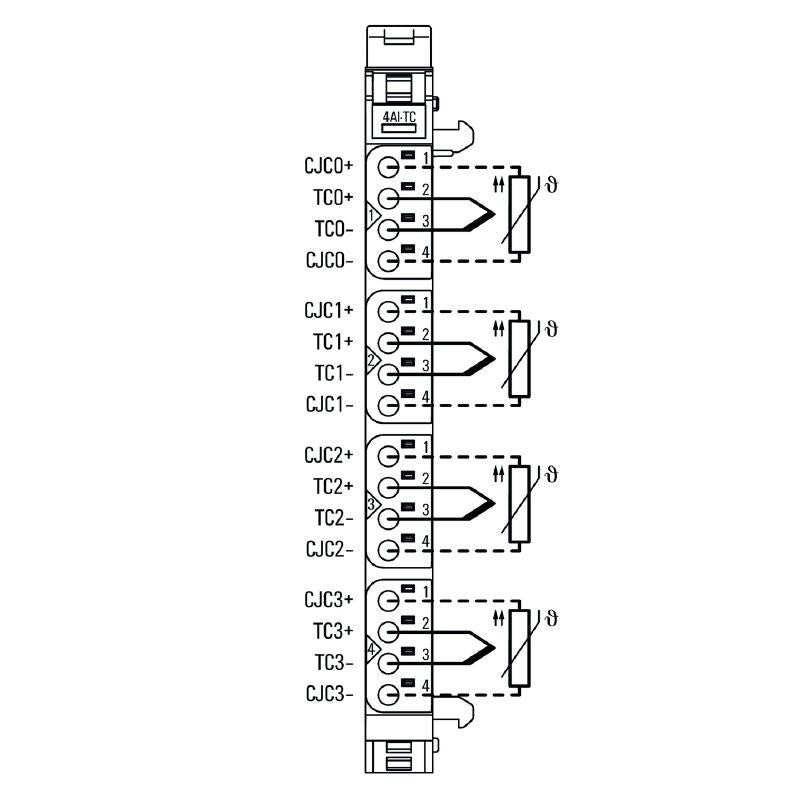

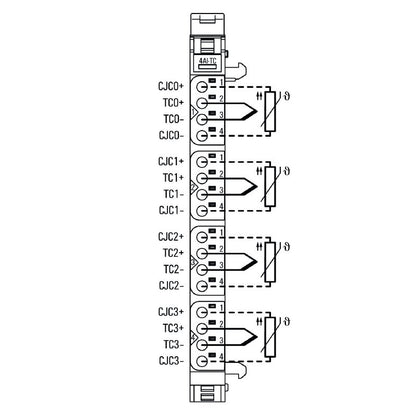

•Internal and external cold-junction compensation possible.

•Channel status indication directly at the contact point.

•Module status displayed via a collective message, LED.

•Adjustable conversion time.

•Galvanic isolation between field and system bus.

•Supports multiple field bus protocols including CANopen, DeviceNet, and Modbus/TCP.

Specifications:
