Description:

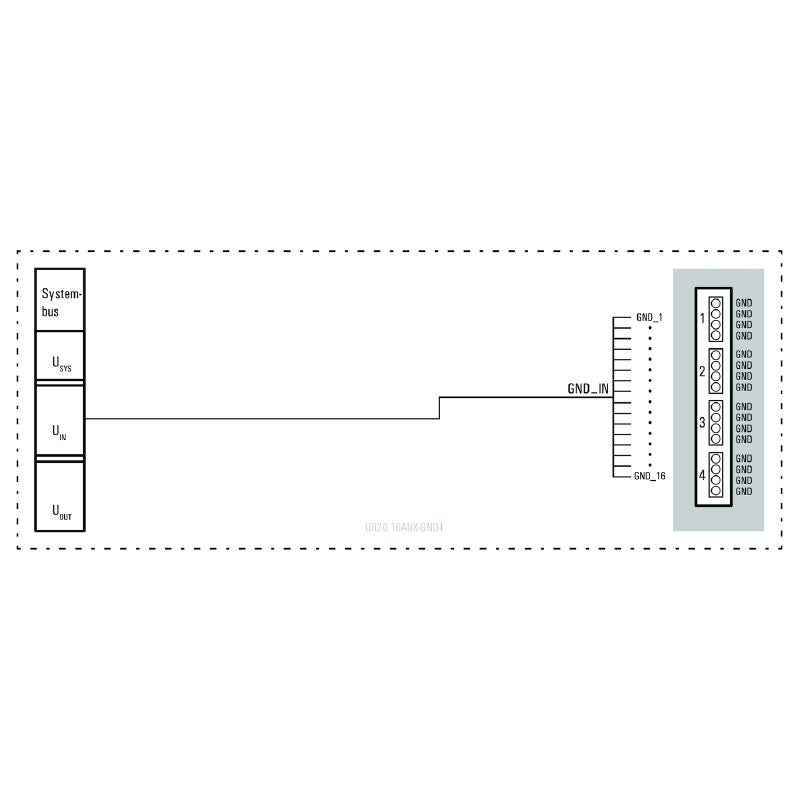

Introducing the Remote I/O module, an efficient potential distributor that boasts an IP20 rating This versatile device is tailored for a variety of applications that require effective grounding from the output current pathway It operates on a supply voltage range of 24 V DC ±20%, making it versatile for different setups
Protected within a sturdy cardboard box, this module complies with various standards, including RoHS regulations.
It is designed to function optimally in extreme conditions, with a storage temperature range from -40 °C to +85 °C and an operational temperature range between -20 °C and 60 °C Reliable and rugged, it's an excellent choice for demanding environments.
Features and Benefits:
•Compliant with RoHS and relevant certifications.

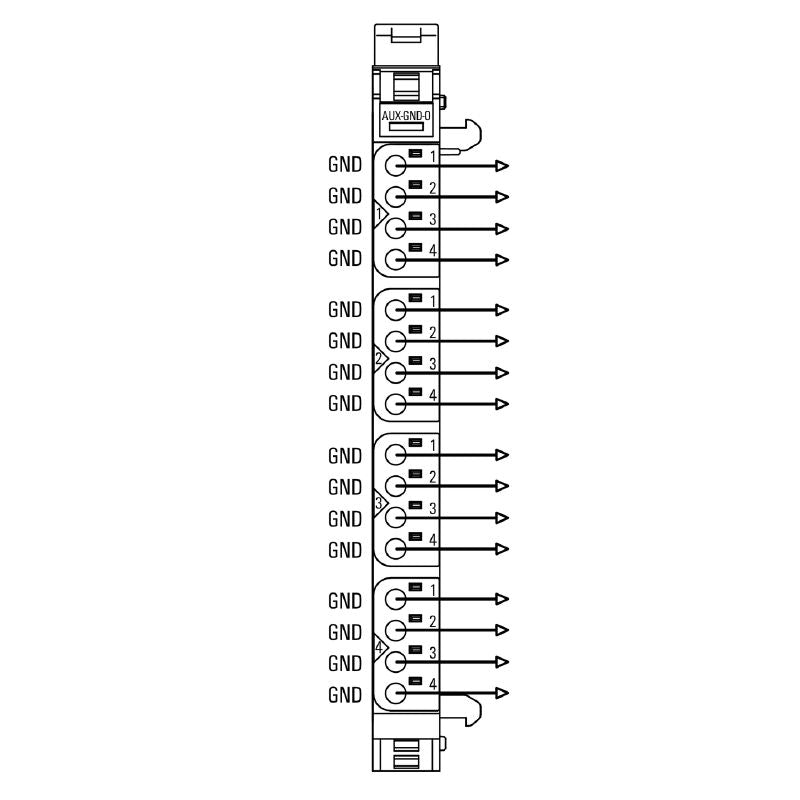

•Designed for 16 connections using PUSH IN technology.
•Operating humidity of 10% to 95% and air pressure specifications.
•Supports multiple field bus protocols including PROFINET IRT and EtherCAT.
•Galvanic isolation of 500 V DC between current paths.
•Maintenance of shock resistance capable of surviving 15 g over 11 ms.
•Environmentally compliant with extensive reach and carbon footprint data.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 11.5 mm |
| Storage temperature | -40 °C to +85 °C |
| Operating temperature | -20 °C to 60 °C |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |
| Air humidity (operation) | 10% to 95%, non-condensing |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) |
| Module type | Auxiliary module |
| Transmission speed backplane bus, max. | 48 Mbit |
| UL 94 flammability rating | V-0 |
