1315180000 - Compact 8-Channel Digital I/O Module, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

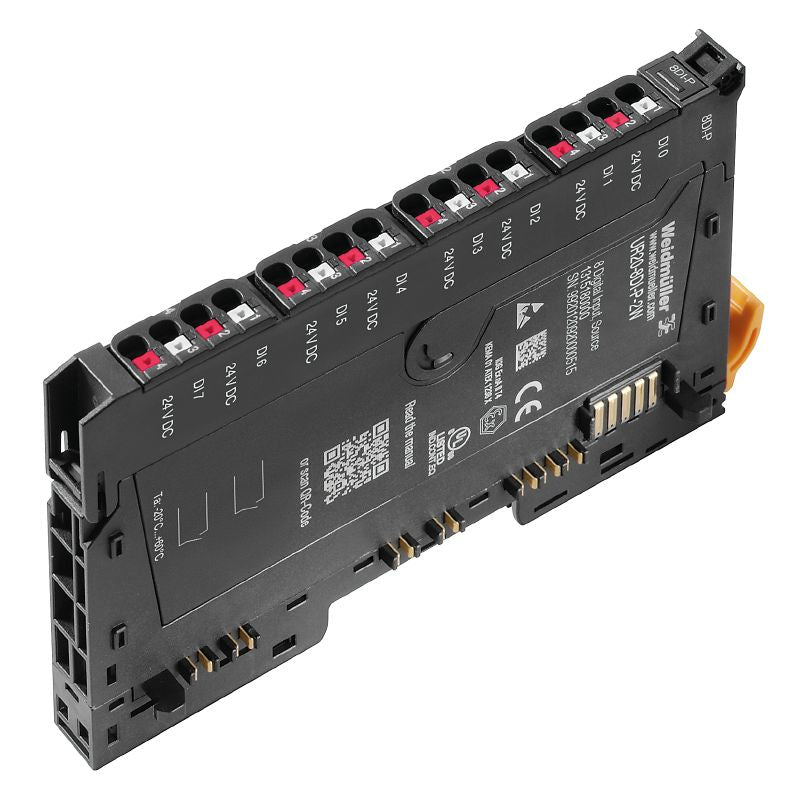

Introducing the UR20-8DI-P-2W, an innovative 8-channel remote I/O module tailored for digital signal applications using a 2-conductor connection This module is fully RoHS compliant and features UL certifications, E141197 and E223527 With its compact dimensions of 76 mm depth, 120 mm height, and 115 mm width, it fits seamlessly into various setups The operational temperature range spans from -20 °C to 60 °C, while it can be stored safely between -40 °C and +85 °C.

Designed for versatility, it provides digital input compatibility along with diagnostic features for every channel The module also includes reverse polarity protection and connects easily using the Push In method, ensuring reliability in a range of applications.

Features and Benefits:

•Compliant with RoHS regulations with exemptions.

•Module operations support high and low input voltage.

•Configurable input filter.

•Module diagnosis capability.

•Backed by UL certifications.

•Supports various field bus protocols.

Specifications:
