Description:

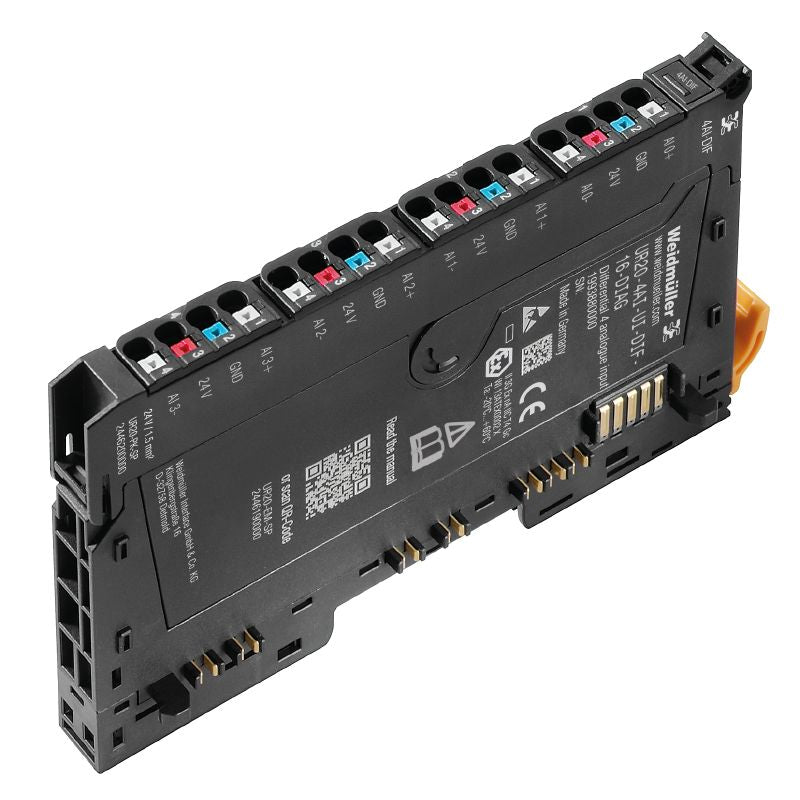

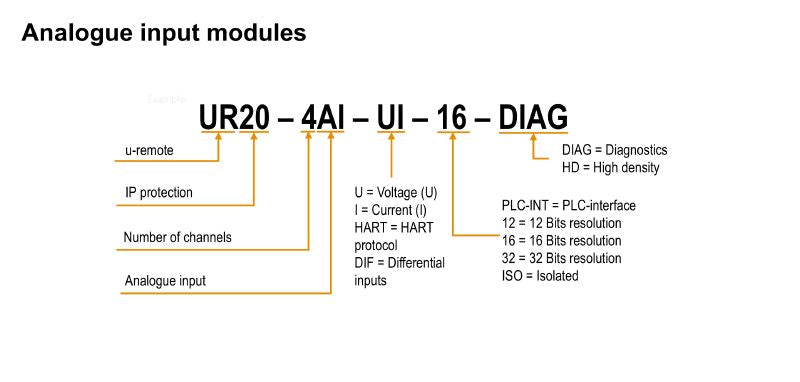

Introducing the UR20-4AI-UI-DIF-32-DIAG remote I/O module, specifically engineered for IP20-rated environments This robust device manages four channels and adeptly processes analog signals, accommodating both current and voltage inputs with a precise 16-bit resolution With UL certification, it meets safety standards for use in both standard and hazardous locations, making it an excellent choice for a variety of applications that demand accurate voltage and current measurements.
Trust in its compliance with stringent safety and environmental regulations to enhance your operational reliability.
Features and Benefits:

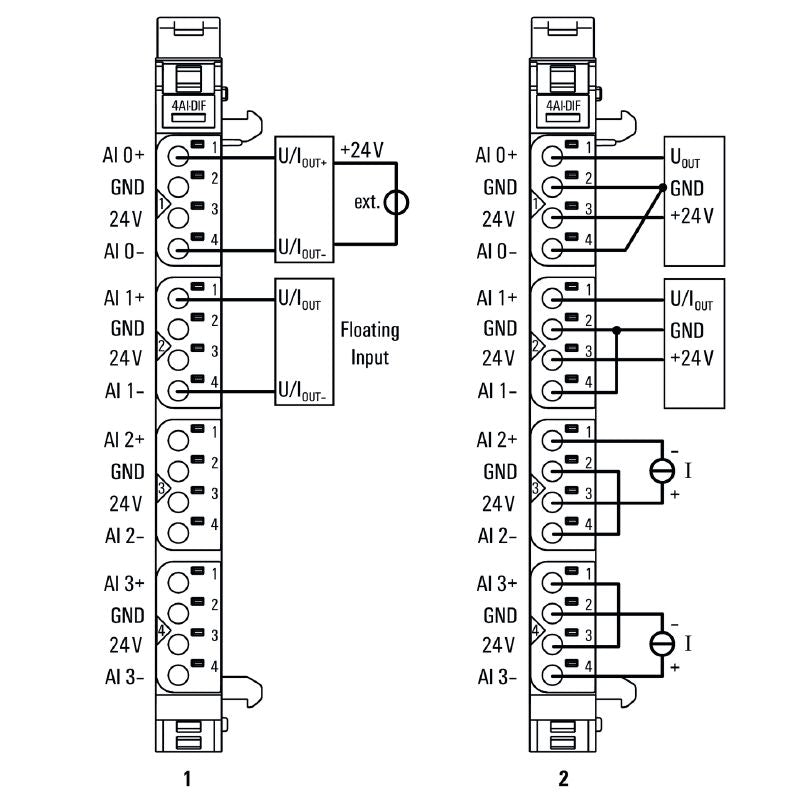

•Compatible with differential input.
•Short-circuit-proof functionality.
•Certified for RoHS and REACH.
•Module diagnosis available.
•Individual channel diagnosis enabled.
•Has reverse polarity protection.
•Ideal for applications requiring analog input for voltage and current signals.
Specifications:
| Dimensions | {'Depth': '76 mm', 'Height': '120 mm', 'Width': '11.5 mm'} |
| Operating temperature | -20 °C to 60 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity (operation) | 10% to 95%, non-condensing |
| Power supply voltage | 24 V DC +20% / -15% |
| Current consumption | {'from I_IN': '31 mA + load', 'from I_sys': 'typ. 8 mA'} |
| Input channels | 4 |
| Accuracy | 0.1% FSR |
| Field bus protocol | ['PROFINET IRT', 'PROFINET RT', 'CC-Link IE TSN', 'PROFIBUS DP-V1', 'EtherCAT', 'Modbus/TCP', 'EtherNet/IP', 'CANopen', 'DeviceNet', 'POWERLINK', 'CC-Link'] |
| Diagnostic data | 1 Bit |
| Transmission speed | max 48 Mbit |
| Galvanic isolation | 500 V DC between current paths |
| Flammability rating | V-0 |
| Weight | 90 g |
