1394390000 - UR20-4AI-UI-12 Remote I/O Module, 4 Analog Channels, IP20

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

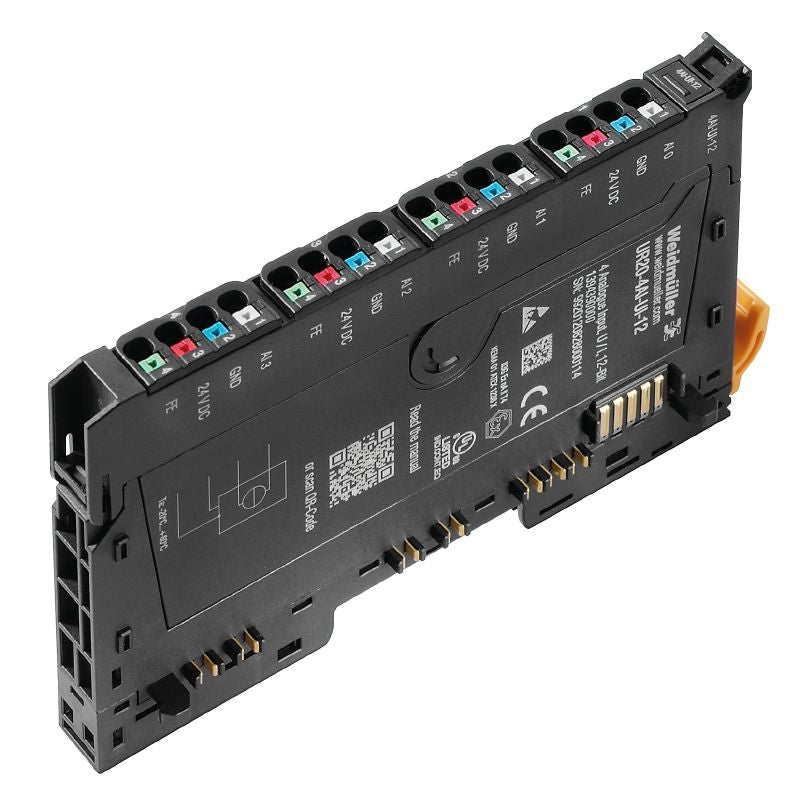

Introducing the UR20-4AI-UI-12, an advanced remote I/O module designed for seamless integration into an IP20 enclosure This module boasts four channels capable of handling both analog current and voltage signals, featuring a precise 12-bit resolution Adhering to RoHS guidelines, it comes with multiple certifications that attest to its safety and environmental compliance With compact dimensions of 120 mm in height, 11.

5 mm in width, and 76 mm in depth, it has a lightweight design at approximately 87 grams The UR20-4AI-UI-12 operates effectively in temperatures ranging from -20 °C to 60 °C while ensuring reliable data storage across a wider temperature range of -40 °C to +85 °C.

Features and Benefits:

•Compliant with RoHS.

•4-channel analog input functionality.

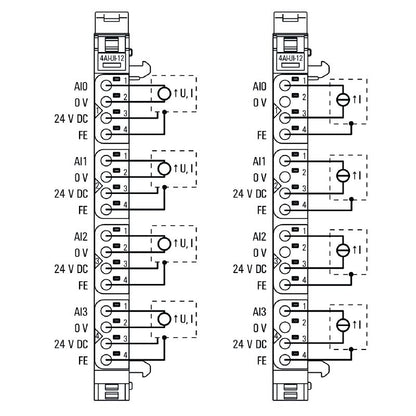

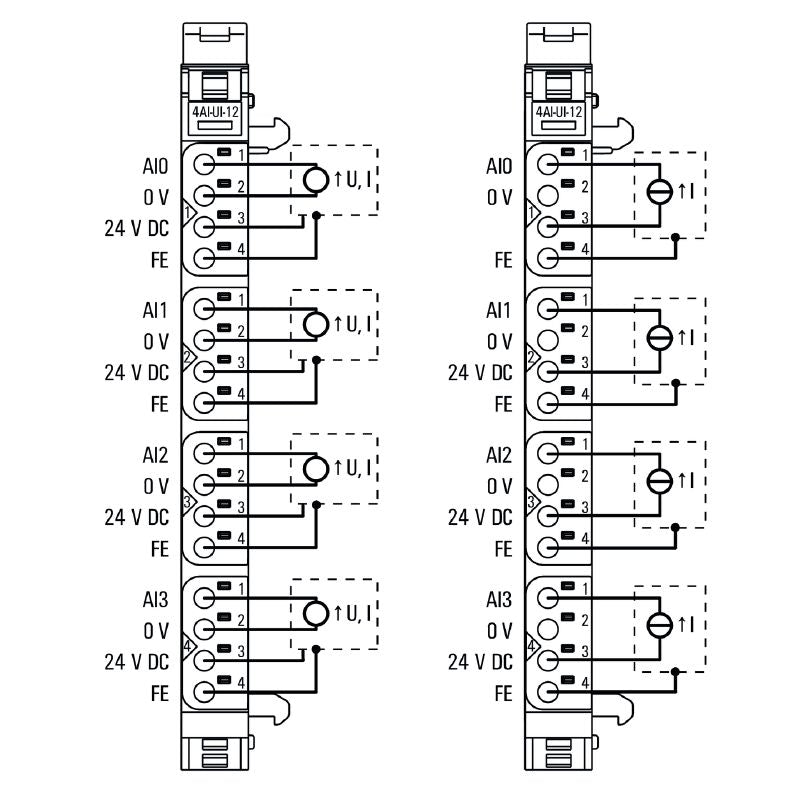

•Supports various sensor connection types including 2-wire and 3-wire methods.

•Reverse polarity protection included.

•PUSH-IN connection system.

•Module diagnostics and individual channel monitoring available.

Specifications:
