Description:

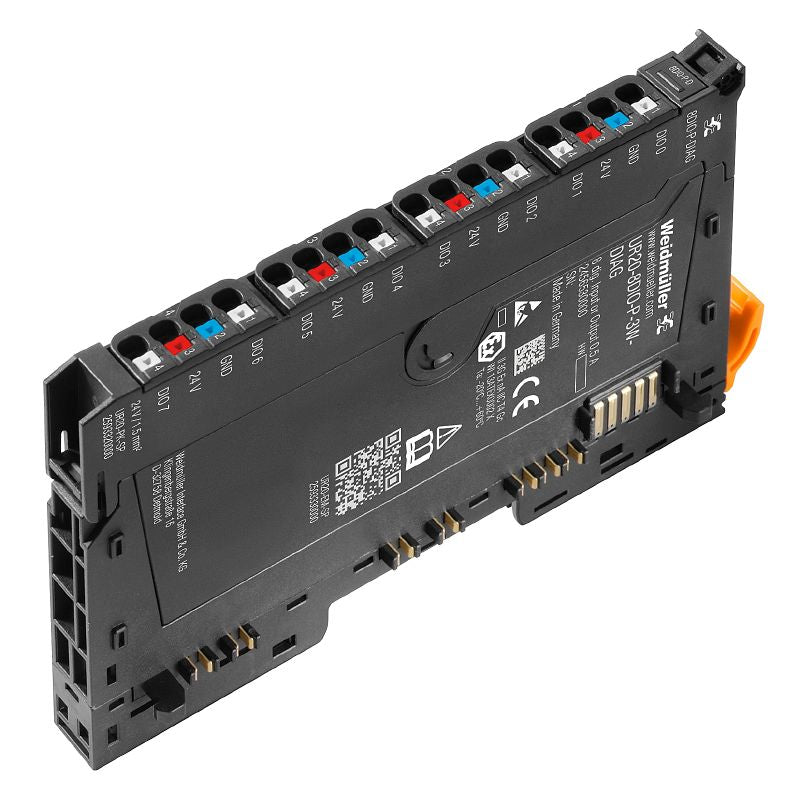

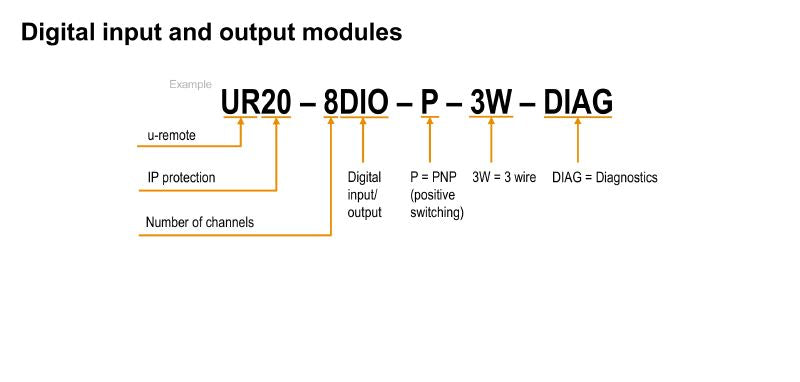

Introducing the UR20-8DIO-P-3W-DIAG, a specialized remote I/O module tailored for seamless digital communication This robust device features 8 dedicated channels that support both input and output signals, making it versatile for various applications It operates effectively in environments with temperatures ranging from -20 °C to 60 °C, and can be safely stored in conditions from -40 °C to 85 °C Adhering to RoHS compliance, this module prioritizes safety with integrated features such as a protective circuit equipped with thermal shutdown and automatic restart capabilities.
Its compact size ensures compatibility with a wide array of installation environments, providing flexibility and efficiency in your projects.
Features and Benefits:
•Compact design suitable for different installation environments.
•Compatible with various sensor and actuator connections.
•Includes diagnostics for both inputs and outputs.
•Allows for adjustable input delays up to 40 ms.
•Certified for safety with UL file numbers E141197 and E223527.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 11.5 mm |
| Net weight | 83 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C...60 °C |
| Input voltage high | > + 11 V referred to 0 V of the output power supply U OUT |
| Input voltage low | <+ 5 V referred to 0 V of the output power supply U OUT |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Output current per channel max | 0.5 A |
| Supply voltage | 24 V DC +20 %/ -15 % |
| Field bus protocol | PROFINET IRT, PROFINET RT, CC-Link IE TSN, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link |
| Module type | Digital input module, Digital output module |
| Transmission speed of system bus max | 48 Mbit |
