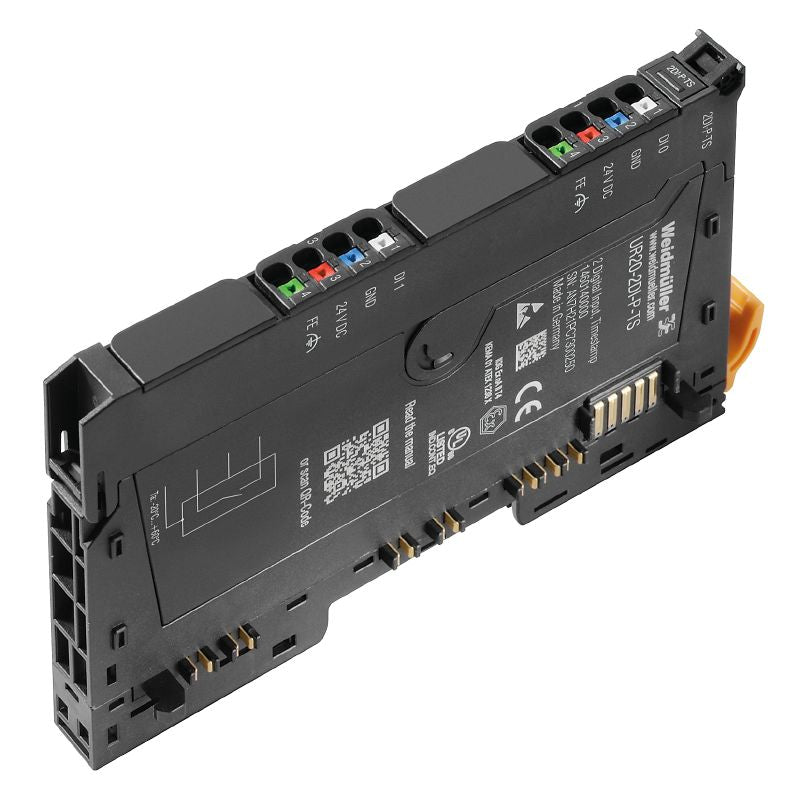

1460140000 - IP20 Dual Channel Digital Input Module, 76mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UR20-2DI-P-TS, an advanced remote I/O module tailored for dual-channel digital input signal processing This robust IP20 rated module holds both RoHS compliance and specific UL certifications (E141197 and E223527), ensuring it meets stringent quality standards With compact dimensions of 76 mm in depth, 120 mm in height, and 115 mm in width, it weighs just 83 g, making it a lightweight addition to your setup.

The module is engineered to operate in a wide temperature range, from -20 °C to 60 °C during use and a storage capacity reaching as low as -40 °C up to +85 °C, ensuring reliability across varying environments.

Features and Benefits:

•Configurable input filter.

•Reverse polarity protection.

•Module diagnosis available.

•Individual channel diagnosis not available.

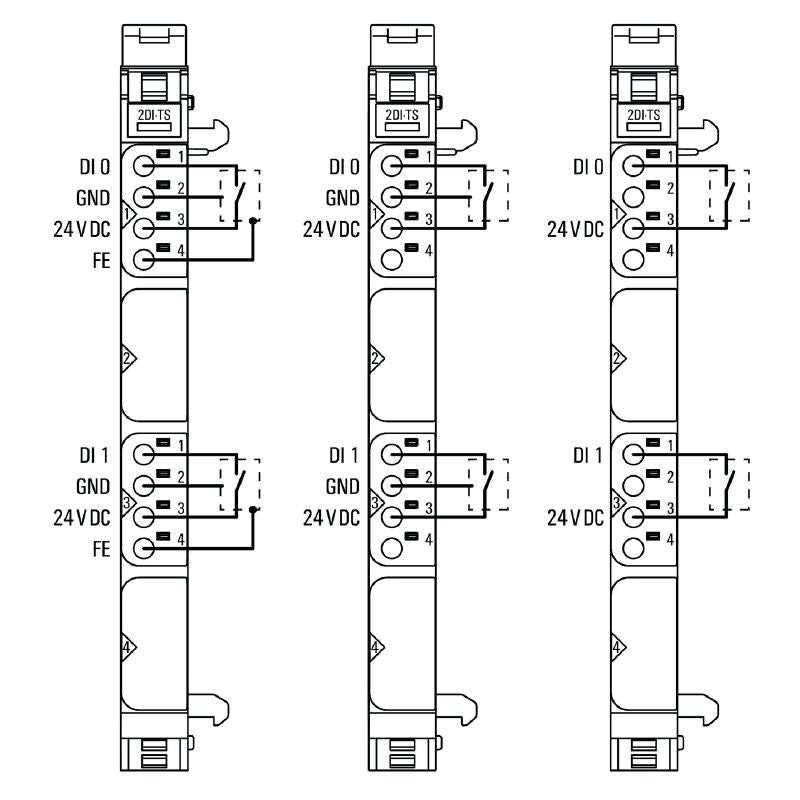

•Sensor connection types include 2-wire, 3-wire, and 3-wire + FE.

•Sensor supply provides varying current from 0 mA to a maximum of 8000 mA.

•Time stamp data width is 16 Bit with a resolution of 1 µs.

Specifications:
