Description:

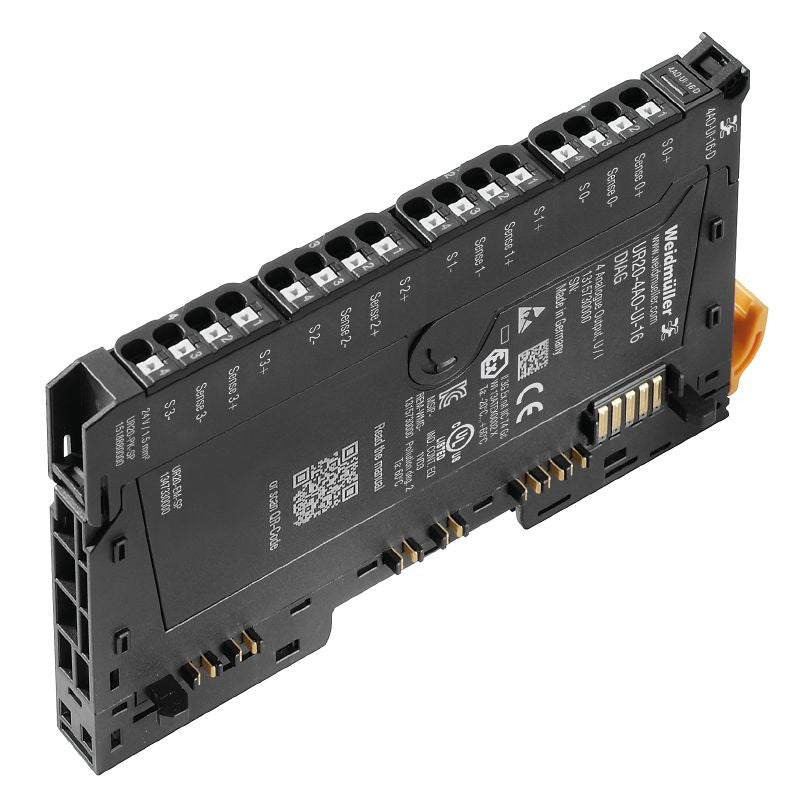

Experience reliable control with this versatile remote I/O module, engineered for analog output that accommodates both current and voltage signals Suitable for IP20 environments, it proudly offers 4 output channels that can precisely deliver a range of voltage and current values tailored to your needs Its certification by UL and compliance with RoHS standards guarantee high safety and environmental responsibility.

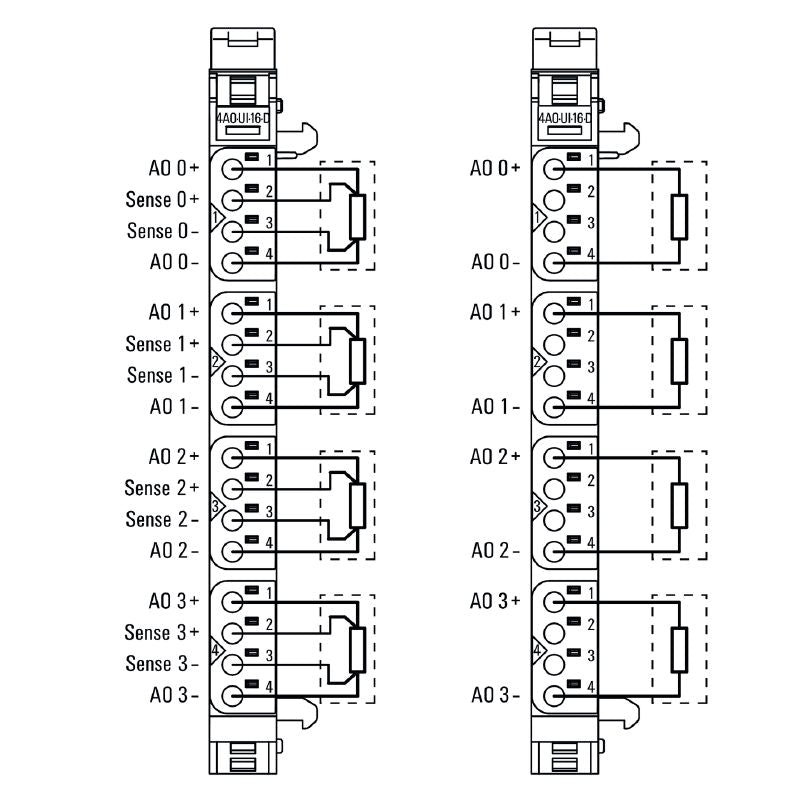

Additionally, the module features the capability for automatic detection of 2-wire actuators and allows for thorough diagnostics on individual channels, enhancing its reliability and performance.
Features and Benefits:
•Compliant with RoHS and UL certifications.
•Automatic detection for 2-wire actuators.
•Detailed individual channel diagnostics.
•Short-circuit-proof outputs.
•Wide operating temperature range from -20 °C to 60 °C.
•High accuracy of ±0.1 % FSR max and 0.05 % FSR typ.
Specifications:
| Depth | 76 mm |
| Height | 120 mm |
| Width | 11.5 mm |
| Storage temperature | -40 °C to +85 °C |
| Operating temperature | -20 °C to 60 °C |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| Wire cross-section, solid, min | 0.14 mm² |
| Supply voltage | 24 V DC +20 % / -15 % |
| Output variable | Voltage (0...5 V, 0...10 V, 1...5 V, 2...10 V, ±10 V, ±5 V) and Current (0...20 mA or 4...20 mA) |
| Resolution | 16 Bit |
| Transmission speed of system bus, max | 48 Mbit |
| Module type | Analogue output module |
| Field bus protocol | PROFINET IRT, PROFINET RT, CC-Link IE TSN, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link |
| Air humidity (operation) | 10% to 95%, non-condensing |
| Diagnostic data | 2 Bit |
| Max. error between T min. and T max. in FSR | 220% |
