Description:

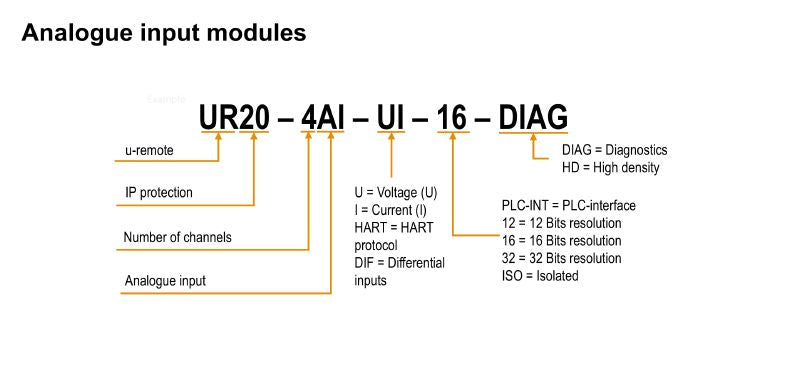

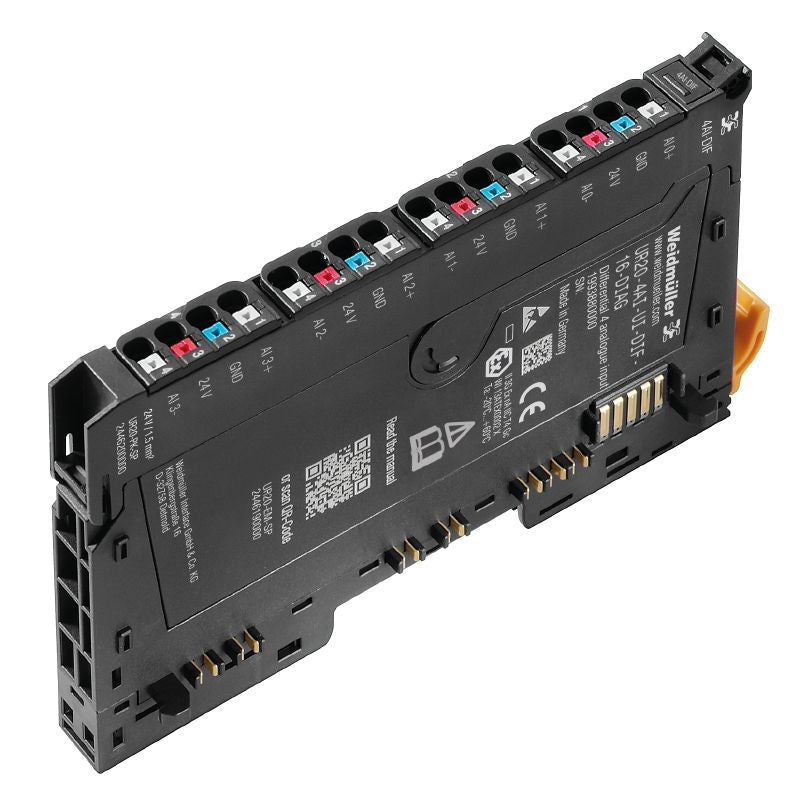

Introducing the UR20-4AI-UI-DIF-16-DIAG, a sophisticated remote I/O module equipped with four-channel input capabilities This device excels in processing analog signals, including voltage and current measurements, boasting a precise 16-bit resolution Designed to operate in environments rated at IP20, it carries various certifications, including RoHS compliance With an impressive operational temperature range of -20 °C to +60 °C, this module is engineered to function reliably under standard environmental conditions, making it a versatile choice for diverse applications.
Features and Benefits:
•Individual channel diagnosis available.
•Module diagnosis included.
•Reverse polarity protection feature.
•Common mode voltage range from -30V to 30V.
•Short-circuit-proof design.

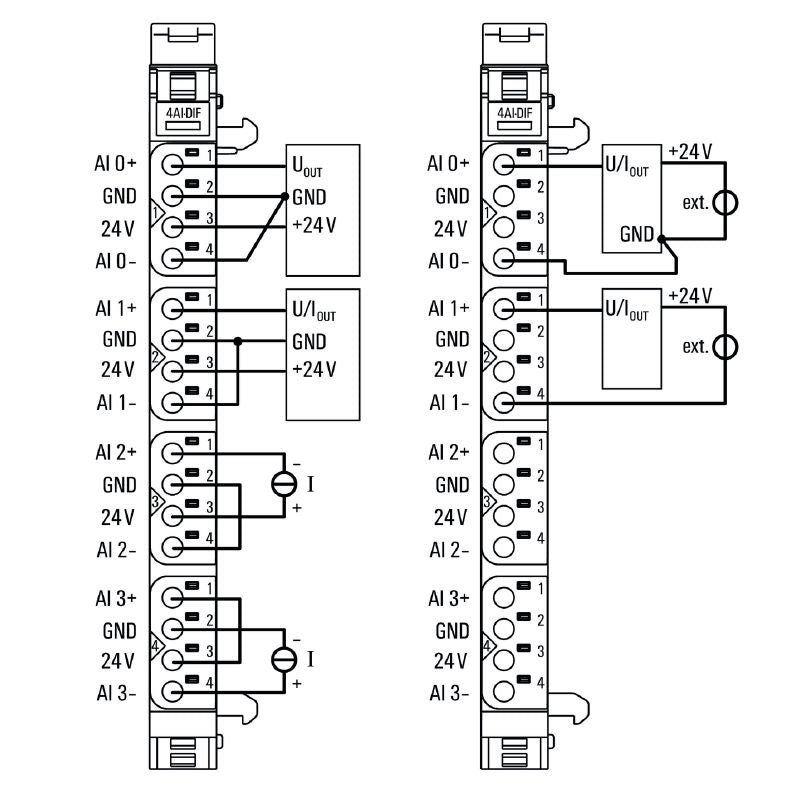

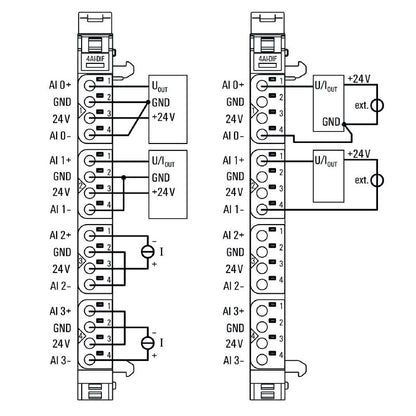

•Supports different sensor connections (2-wire, 3-wire, 4-wire).
Specifications:
| Operating temperature | -20 °C to 60 °C |
| Storage temperature | -40 °C to +85 °C |
| Dimension (depth) | 76 mm |
| Dimension (height) | 120 mm |
| Dimension (width) | 11.5 mm |
| Weight | 90 g |
| Power supply voltage | 24 V DC +20 % / -15 % |
| Current consumption from I sys | 8 mA |
| Input type | Differential input |
| Number of analogue inputs | 4 |
| Resolution | 16 Bit |
| Wire connection cross section (max) | 1.5 mm² |
| Wire connection cross section (min) | 0.14 mm² |
| Air humidity (operation) | 10% to 95%, non-condensing |
| Field bus protocol | PROFINET IRT, PROFINET RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus/TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link |
| Galvanic isolation | 500 V DC between the current paths |
| Test voltage | 500 V |
| UL File Number | E141197 |
