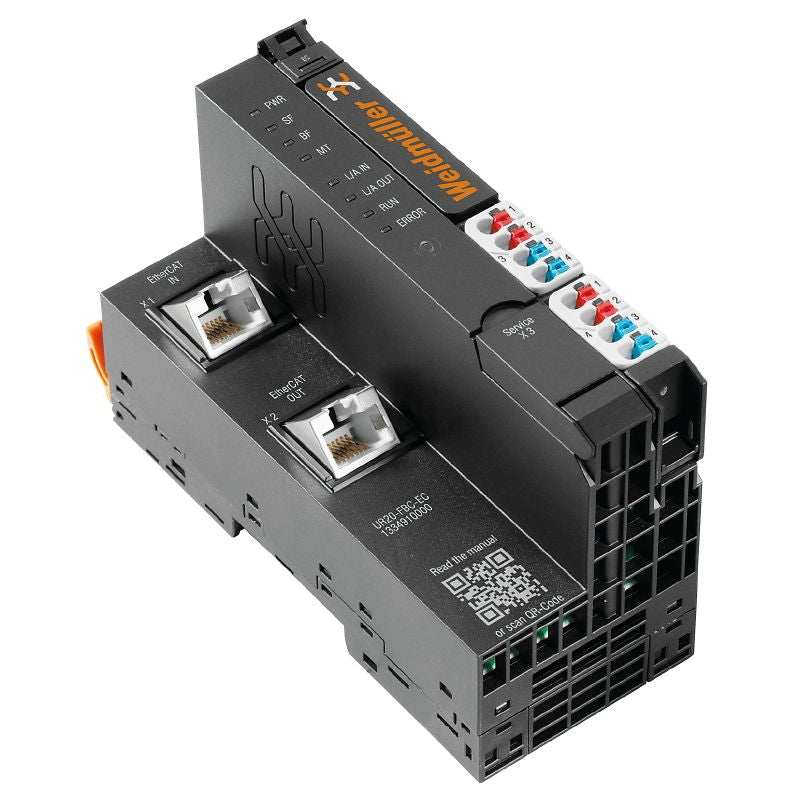

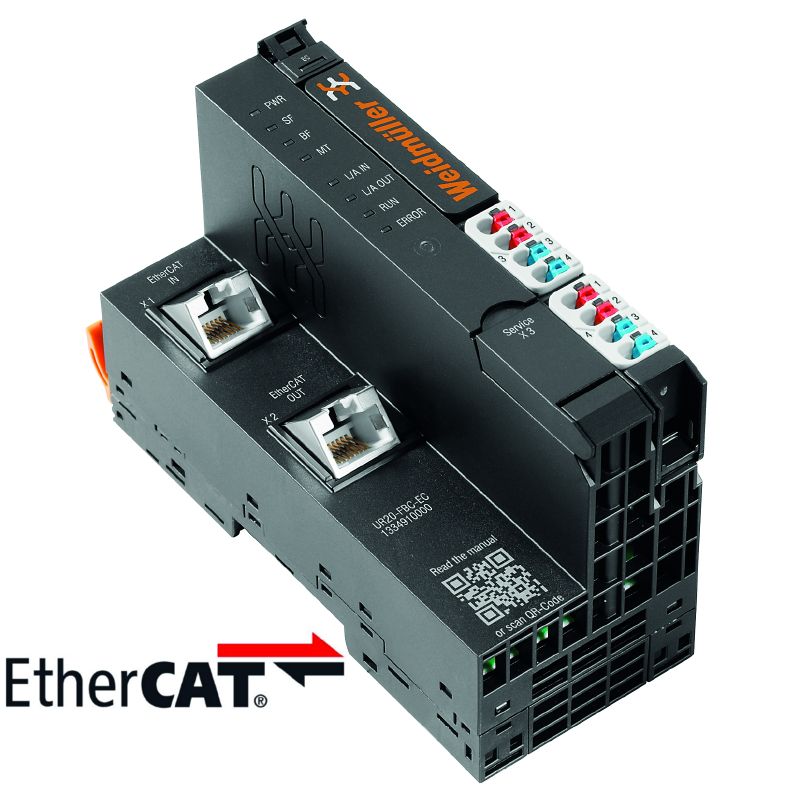

1334910000 - High-Speed 100 Mbit/s EtherCAT Coupler with 2-Port Switch

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UR20-FBC-EC EtherCAT field bus coupler, expertly crafted for seamless integration of digital and analog signals Featuring a built-in 2-port switch, this device ensures swift performance with a data rate of 100 Mbit/s It intelligently detects connected modules and automatically generates a process image, providing excellent flexibility for module arrangement This coupler utilizes PUSH-IN terminal connections and boasts a system bus transmission speed of 48 Mbit.

It runs on a 24 V DC power supply, accommodating a variance of +20% to -15% With a maximum system feed-in current of 4 A and the capacity to support up to 64 modules, it is perfectly suited for diverse industrial applications, enhancing efficiency and versatility in your setups.

Features and Benefits:

•EtherCAT protocol support.

•Integrated 2-port switch.

•Seamless module recognition and process image generation.

•Flexible configuration with PUSH-IN connection system.

•Supports up to 64 modules.

•Used as an EtherCAT I/O device in various applications.

Specifications:
