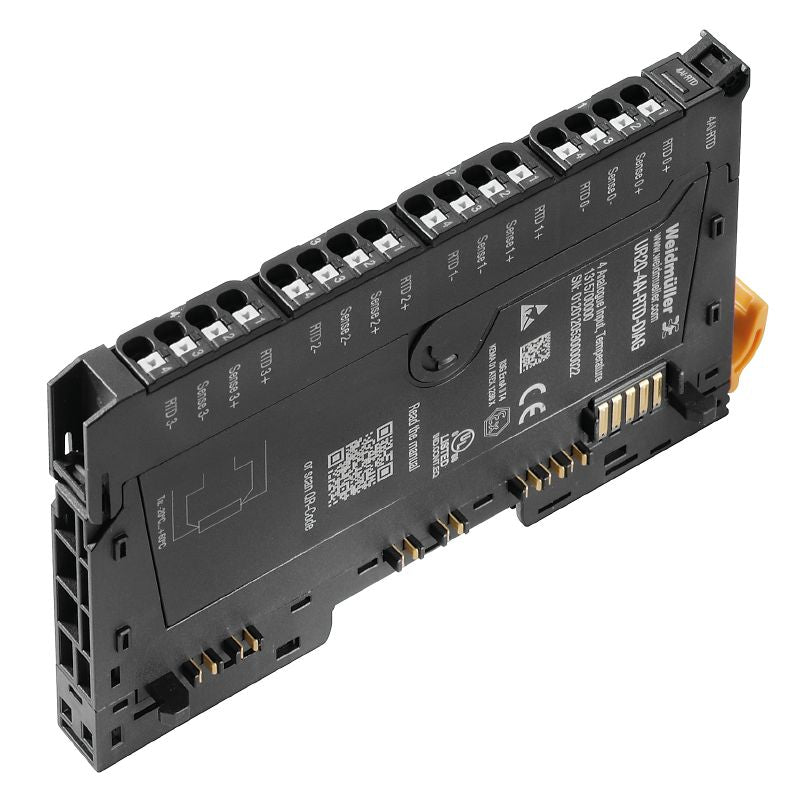

1315700000 - IP20 RTD Remote I/O Module, 4 Inputs, 76mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UR20-4AI-RTD-DIAG, a reliable IP20-rated remote I/O module expertly engineered for precise temperature measurement using RTD sensors Compact in design, it measures 76 mm in depth, 120 mm in height, and 115 mm in width, making it a great fit for various setups It operates effectively within a temperature range of -20 °C to 60 °C and is compatible with multiple sensor types, including Pt and Ni sensors.

This module features four analog inputs with a high degree of accuracy up to 02% FSR and offers flexible conversion times ranging from 36 ms to 240 ms Enhanced by reverse polarity protection and a high internal resistance, it also boasts 16-bit resolution, catering to diverse industrial applications Its sturdy construction and sensor compatibility make it a valuable asset for your projects.

Features and Benefits:

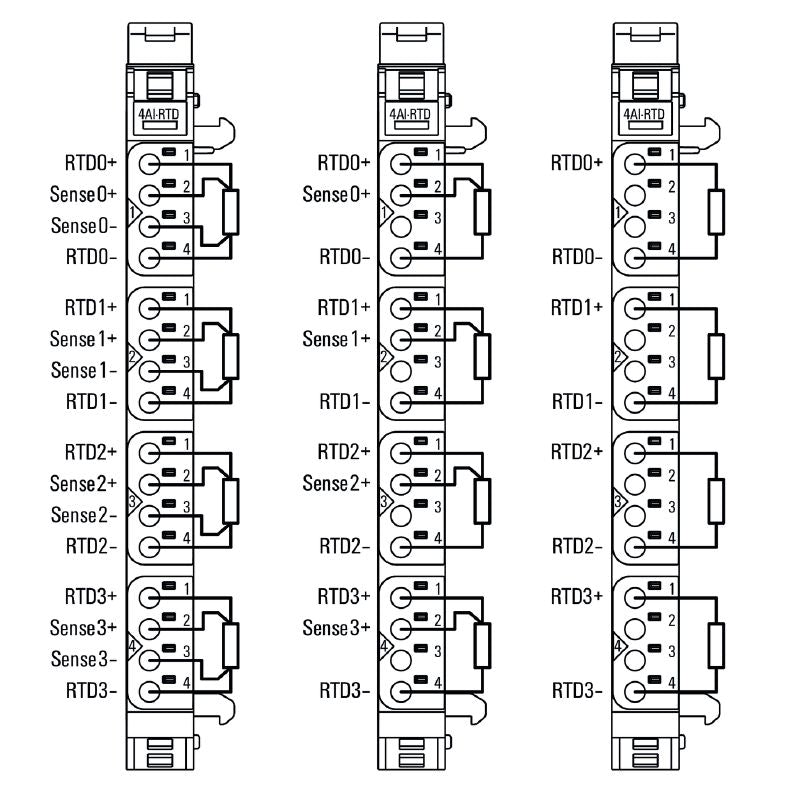

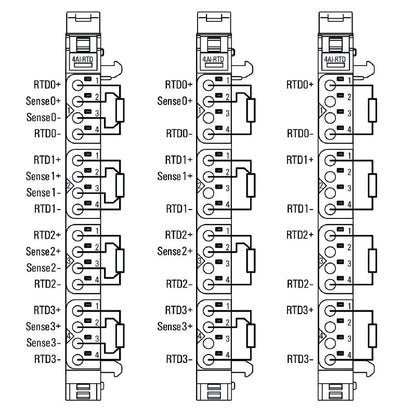

•Supports various sensors including Pt100, Ni100, and Cu10.

•Reverse polarity protection.

•Individual channel diagnosis available.

•Galvanic isolation between current paths.

Specifications:
