1394400000 - Compact 8-Channel Digital Remote I/O Module, 76mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

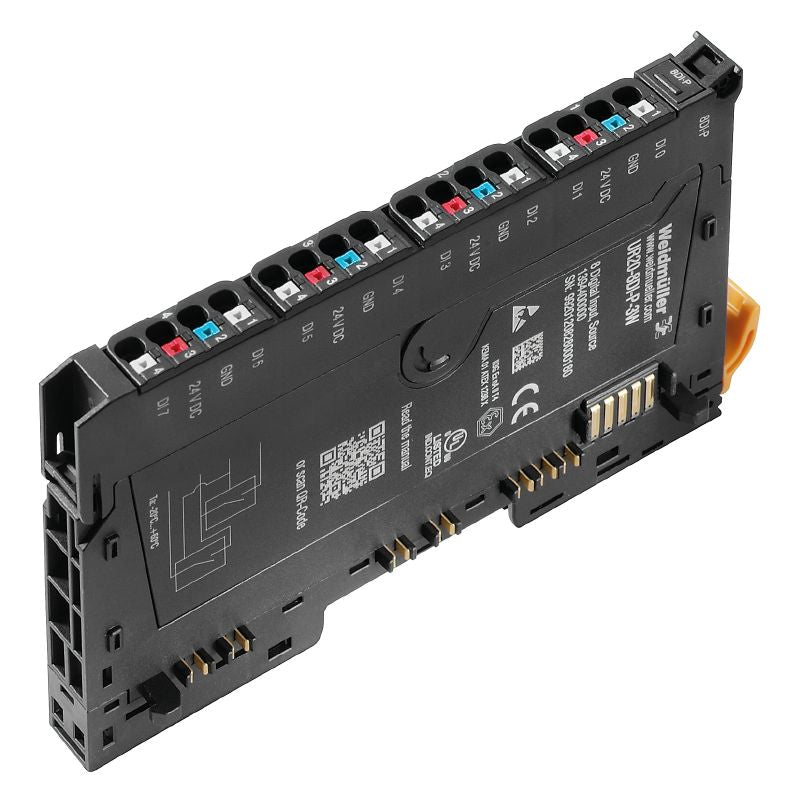

Introducing the UR20-8DI-P-3W remote I/O module, expertly crafted for handling digital signals with its 8-channel input setup This module complies with ROHS standards, promoting environmental responsibility With dimensions of 120 mm in height, 115 mm in width, and a depth of just 76 mm, it’s designed to fit effortlessly into your existing systems Operating within a temperature range of -20 °C to 60 °C ensures its adaptability, while it can be stored in conditions as extreme as -40 °C to 85 °C.

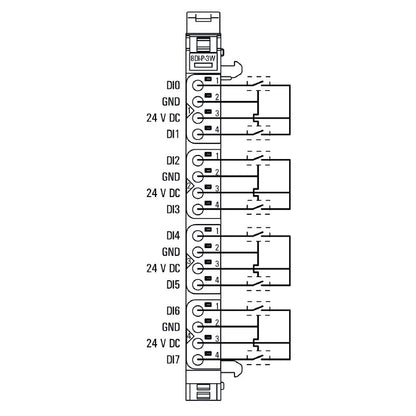

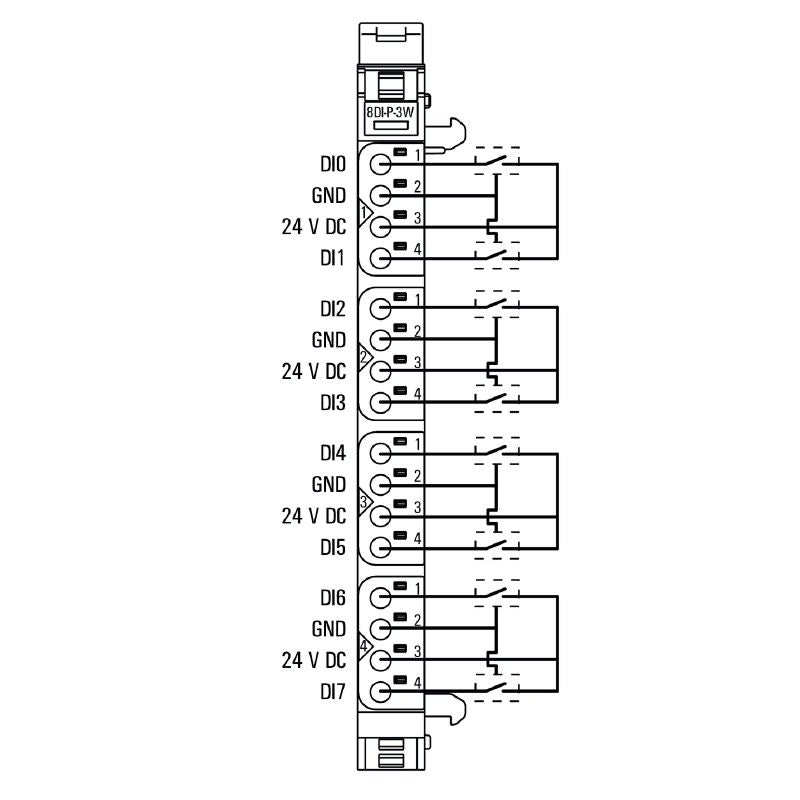

The module is certified with multiple approvals, including cULus confirmations E141197 and E223527, guaranteeing high-quality performance It accommodates both high (> 11 V) and low (< 5 V) input voltages, featuring reverse polarity protection for enhanced safety Additionally, it supports flexible sensor connections, including 2-wire and 3-wire configurations, complete with sensor supply capabilities and specific ratings for minimum, nominal, and maximum currents.

The user-friendly PUSH IN connections can handle a variety of wire sizes, making it a versatile choice that aligns with industry standards.

Features and Benefits:

•Compact and lightweight design.

•Configurable input filter.

•Module diagnosis capability.

•Compatible with multiple field bus protocols including PROFINET and EtherCAT.

•Supports 500 V DC galvanic isolation between current paths.

Specifications:
