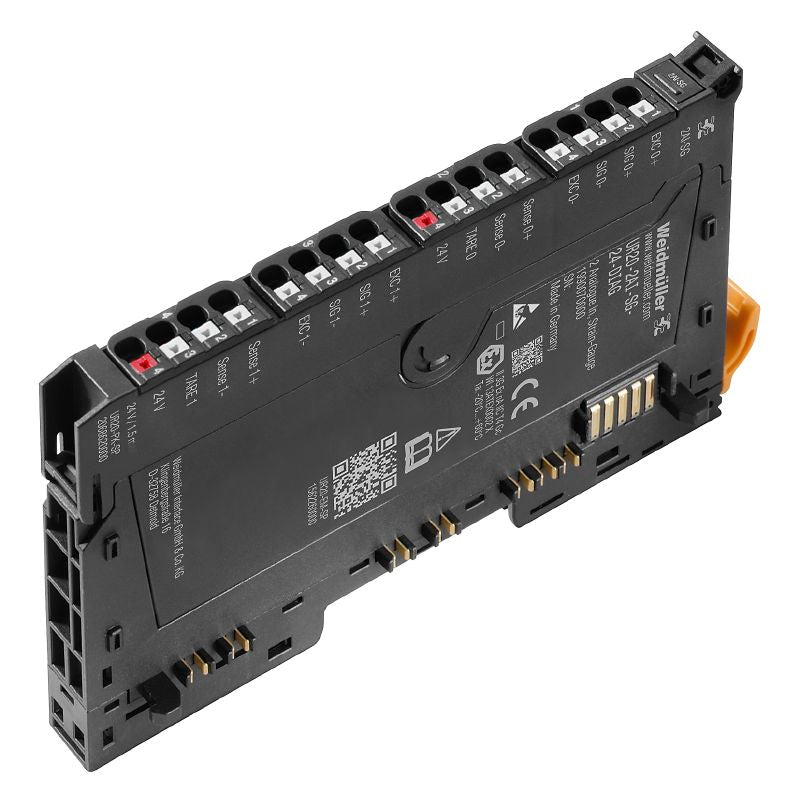

1990070000 - IP20 Remote I/O Module, Dual Analog Inputs, 76mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

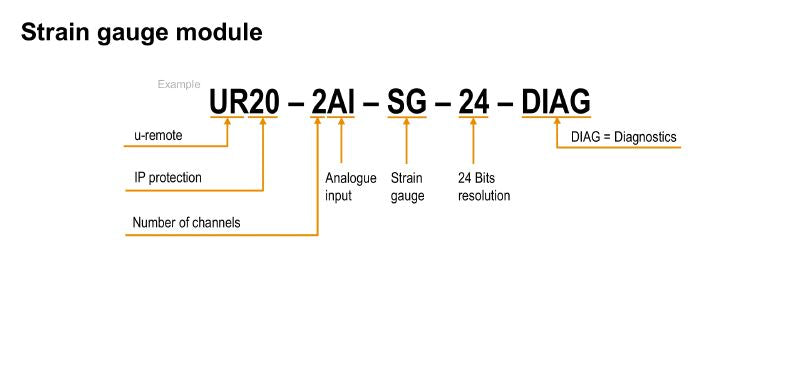

Introducing the UR20-2AI-SG-24-DIAG remote I/O module, an advanced solution for analog signal input featuring a reliable PUSH IN connection This IP20 rated device meets stringent ROHS compliance standards, ensuring it adheres to environmental regulations With compact dimensions of 76 mm in depth, 120 mm in height, and a width of 115 mm, it weighs a lightweight 90 grams This module operates seamlessly in temperatures ranging from -20 °C to +60 °C, while offering storage capabilities in a broader range of -40 °C to +85 °C.

It accommodates two analog input channels, each equipped with individual diagnostics and enables a high resolution of 24 bits per channel, making it a robust choice for your connectivity needs.

Features and Benefits:

•Compliant with ROHS exemption.

•Short-circuit-proof connection.

•Modular design with a PUSH IN connection.

•Supports calibration and parameterization for varying sensor loads.

Specifications:
